Zmde High Precision Metal Beam Drilling Equipment for H Beam Structures

Product Description

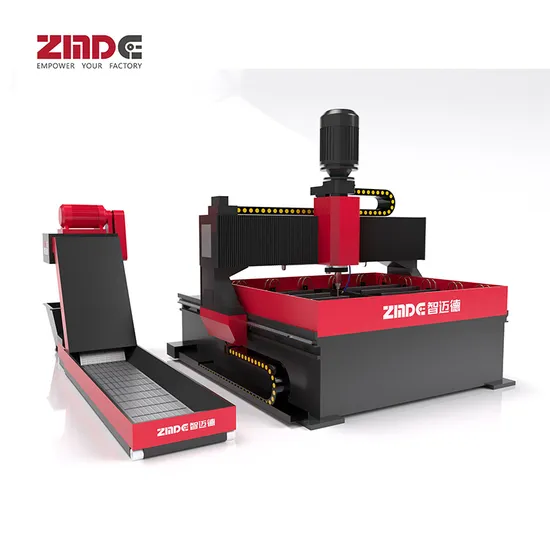

ZMDE Industrial Metal Drilling Equipment for High Precision Building H Beam Structure
------------------------------------------
>Unparalleled Cost-Efficiency <
1. Constructed from premium, solid materials, our machine boasts an impressively low failure rate, translating to significantly reduced maintenance costs. Key components such as ball screws, linear guide vices, hydraulic parts, electrical parts, servo motors, and frequency converters are all sourced from renowned industry brands.
2. Featuring a CRT display with automatic chip removal capabilities, this machine eliminates the need for manual cleaning, saving you valuable time and labor.
3. Our equipment ensures high precision and a high qualification rate of workpieces, leading to lowered consumable costs and boosted productivity.
>Effortless Operation, Exceptional Productivity <
1. The intuitive human-machine interface is clear and visual, effortlessly generating automatic machining programs.
2. Utilizing advanced CNC and PLC controls, our machine guarantees accurate positioning for all operations.
3. Workpieces are securely clamped via hydraulic clamps, and operators can easily control the process using a foot switch, providing a convenient and labor-saving experience.
4. Equipped with 12 fast hydraulic clamps distributed around the table, the machine can clamp four groups of workpieces simultaneously for maximum efficiency.
5. Small workpieces can be efficiently clamped at the four corners of the working table, reducing production preparation cycles and significantly enhancing production efficiency.
6. By clamping small workpieces at the four corners, production preparation periods are minimized, optimizing overall production efficiency.
> Superior Quality, Versatile Applications <
1. Key components, including the gantry, column, and table, are constructed from robust materials, with the main machine weighing up to 6300kg, ensuring durability and stability.
2. Ideal for a wide range of industries, this machine is essential for connecting plate processing applications.
3. Capable of handling a broad range of drilling diameters from 12mm to 50mm, catering to diverse operational needs.
> Adaptable to Various Production Scenarios <
1. Perfect for continuous production of multiple batches of single flat-type workpieces.
2. Versatile in manufacturing, accommodating small batch production of various workpiece shapes, including rectangular, round flanges, and polygonal plates. It can process multiple different specifications simultaneously.
3. Efficiently produces multiple layers of thinner sheets in stacks, capable of drilling holes up to a maximum stack height of 100mm.
4. The upper computer software automates processing start and end points, enabling drilling of through holes, blind holes, step holes, and hole-end chamfers with precision.
> Advanced Production Process Automation <
1. Our line board integration achieves a high degree of automation, with automatic positioning according to the drilling program for precision and efficiency.
2. The machine automatically adjusts the optimal feeding volume based on different hole diameters, ensuring consistent and accurate results.
3. Capable of automatic and continuous processing of large hole diameters, achieving one-time processing and molding.
4. Comes with an automatic chip removal function, streamlining the production process and maintaining a clean work environment.
Technical Parameters

Machine Configuration
High Precision CNC Radial Drill for H-Beam Processing
Model.		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Width (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1pc
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW

Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg

Company Profile
Founded in 2013, ZMDE Co., Ltd. is a trailblazer in the realm of intelligent equipment for assembly buildings. With a specialization in research, development, manufacturing, sales, and service, ZMDE has earned recognition as one of the national 'small giants' in high-tech enterprises. Our core expertise is rooted in the development of steel structure assembly building intelligent industrial mother machines and pioneering advancements in industry IoT.Moreover, we excel in creating sophisticated intelligent control systems.
Strategically located in the Lingang New Area of Pudong New District, Shanghai, our headquarters spans an impressive 32,000 square meters. This state-of-the-art facility is the home of the Research Institute of Artificial Intelligence for Assembled Buildings, where we spearhead the management and evolution of cutting-edge core technologies in AI for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
Our Shandong base, positioned in Weicheng District, Weifang City, is dedicated to the research, development, and production of intelligent industrial mother machines, specifically designed for the steel beams and walls of assembled buildings.
FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.

2.Q: What are the payment terms?
A: L/C; T/T.

3.Q: How long is the delivery time?
A: 30 Days.

4.Q:How long is the warranty period?
A: 1 Year.(Original Manufacturers. equipment parts can be achieved lifelong maintenance)
5.Q: ODM/OEM Service
A: Available

---
