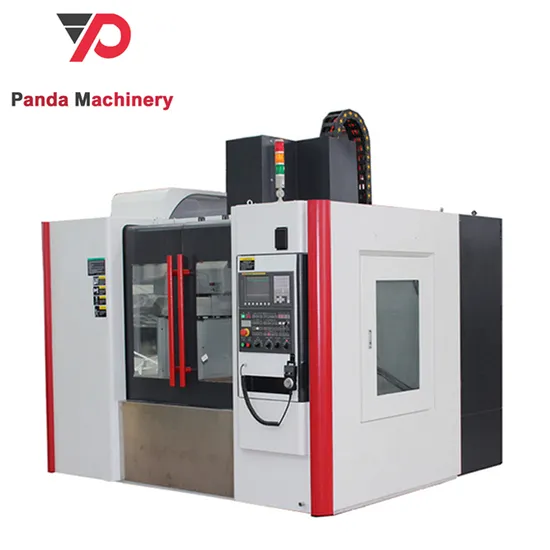

Vertical Machining Center (VMC850 VMC1060 VMC650 VMC1370 VMC1580)

Product Description

Product Description
Metal Processing CNC Milling Vertical Machining Center VMC860
Our main products are as below: * Wheel Repair CNC Lathe Machine* Vertical CNC Lathe Machine* Horizontal CNC Lathe Machine* Slant Bed CNC Lathe Machine* Universal Lathe Machine* Pipe Threading CNC Lathe Machine* CNC Milling Machine* CNC Vertical Machining centerAll the above products have passed CE, SGS certificates. Our Strength * Over 18 years manufacturing experience in CNC lathe machine.* Quality is the life of our company, and we offer you the best high value added machines.* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.* Customer service is the power that drives our company forward.
Features: 1. Resin sand casting;
2. X, Y, Z rails adopt stainless steel telescopic cover;
3. Taiwan production pneumatic cylinder;
4. Taiwan ATC, carousel type and disc type are available as option;
5. Headstock balancing system have heavy casting or nitrogen balance system as option;
6. Full enclosed cover;
7. Rigid tapping;
8. Work lamp;
9. USB and Internet interface;
10. Manual pulse generator (MPG);
11. Centralized automatic lubrication system.
12. Cooling system.
13. Heat exchanger for electrical cabinet ;
14. Leveling blocks & bolts;
15. Toolbox and tools; Product Parameters

SPECIFICATIONS	Units	VMC650	VMC850	VMC1050	VMC860
Table size	mm	800*400	1000*500	1000*500	1000*550
X X axis travel	mm	650	800	1000	800
Y Y axis travel	mm	400	500	500	600
Z Z axis travel	mm	500	500	550	600
Max. worktable load	kg	400	500	500	600
T(-×) T slot(number-width*pitch)	-	3-18*125	5-18*100	5-18*100	5-18*100
Max. spindle speed	rpm	8000	8000	8000	8000
Spindle taper	BT	BT40	BT40	BT40	BT40
Main motor power	kw	5.5	7.5	7.5	7.5
X/Y/Z X/Y/Z rapid traverse speed	m/min	24/24/20	24/24/20	24/24/20	24/24/20
Cutting feed speed	mm/min	1-10000	1-8000	1-8000	1-8000
Guide rail type	-	Linear rail	Linear rail	Hard rail	Linear rail
Distance from spindle axis to column surface	mm	469	525	600	590
Distance between spindle nose and table surface	mm	100-600	130-630	130-680	130-660
Positioning accuracy	mm	±0.0075	±0.0075	±0.0075	±0.0075
Repeat positioning accuracy	mm	±0.005	±0.005	±0.005	±0.005
Tool magazine	-	Armless 16	Arm 24	Arm 24	Arm 24
Max. tool diameter	mm	φ90	78/120	78/120	78/120
Max. tool weight	kg	8	8	8	8
Machine weight	kg	4000	5500	5600	6000
(××) Overall dimension	mm	2400*2000*2550	2600*2300*2800	3200*2400*2800	2900*2400*2800

Sample Products
Company Profile
Zaozhuang Panda CNC Machinery Co., Ltd. is an enterprise specializing in the production of various types of rotary joints and metal processing machinery. The plant covers an area of 100,000 square meters, with a construction area of 80,000 square meters. For decades, we have been providing all kinds of CNC milling machines, CNC machining centers, CNC lathes, lathes, milling machines, drilling machines, sawing machines, grinding machines, as well as metal processing machinery products such as tools and mechanical accessories for all walks of life in the national economy. Our machines are very popular overseas and exported to more than 100 countries and regions, and our machines are loved and welcomed by customers,Have obtained CE, ISO, TUV, SGS, EAC and other certificates. We have more than 20 years of experience in supplying these machines to more than 100 countries, and our machines are loved and welcomed by customers at home and abroad.

Our Advantages

Certifications
Cooperated Brands
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us at any time.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
100% Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5: What's the MOQ?6.. What levell of series fo you provide?--->Your inquiry will be replied within 24 hours.
7. Technology support by providing operation?training videos?
---->Professional after-sales service team. We can Provide Technical support online service and Machine operation Video. We can provide on-site training and commissioning Video. We can Provide Spare parts replacement and repair service.
Give reasonable offers with the best quality.
8. What is our advantages?----> Competitive price: We can meet your budget and best-selling business very well. OEM Accepted: We can produce customized design. Good Service: We treat clients as friends and provide problem solving anytime you need. Good Quality: We have strict quality control system. Good reputation in the market. Fast & Delivery: We have big discount from forwarder (Long-term Contract).
9. Can you customize the machine for the customer?---->Yes. We can, if you need customized services, please contact us
10.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
11.Agents Wanted:---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
