Oilfield Drilling Equipment High Chrome Mud Pump Spare Parts Liner Bi-Metal Liner

Product Description

Product Description

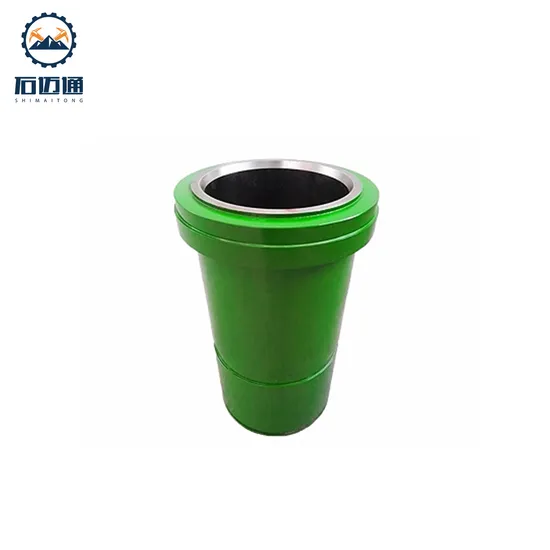

The bi-metal liner offers long service life of about 800 hours, which is 2 to 3 times the lifetime of common ones in severe environment.AS one of main quick-wear parts, bi-metal liner consists of internal liner,which of made of wear-resistant high chromium alloy,and external liner,which is made of high quality carbon steel.its inner hole hardness is above HRC62 after heat treating,and it can perform a good ability of corrosion resistance and abrasion resistance in poor working condition,its normal service life is more than 800 hours. Product Parameters

Item	F500	F800	F1000	F1300	F1600
Power Rating HP(kw)	500 (373)	800 (597)	1000 (746)	1300 (969)	1600 (1193)
Stroke RatingSPM	165	150	140	120	120
Stroke Length(in /mm)	7.5" /190.5	9"/228.6	10"/254	12"/305	12"/305
Gear Ratio	4.286	4.185	4.207	4.206	4.206
Inlet Dia. (in/mm)	8"/203	10"/254	12"/305	12"/305	12"/305
Outlet Dia. (in)	4" Flange 5000psi	5-1/8" Flange 5000psi	5-1/8" Flange 5000psi	5-1/8" Flange 5000psi	5-1/8" Flange 5000psi
Valve	API5#	API6#	API6#	API7#	API7#
Max. Liner (in/mm)	6-3/4"/170	6-3/4"/170	6-3/4"/170	7"/180	7"/180
Overall Dimension L*W*H(mm)	3658*2709 *2231	3963*3025 *2410	4267*3167 *2580	4617*3260 *2600	4615*3276 *2688
Approx. Weight (kg)	9770	14500	18790	24572	24791

Product pictures

---
