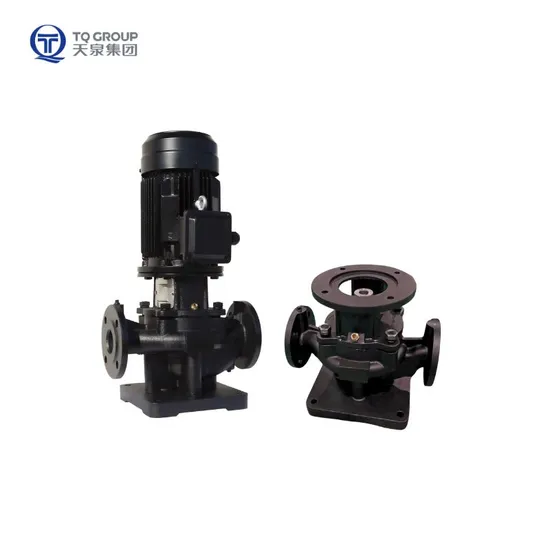

Tp (L) Series Vertical Inline Centrifugal Pump Water Pump Monoblock Pump for High Temperature 140c

Product Description

Product Description Model TP is the third generation single-stage circulation water pump designed for maximum 140ºC water and industrial fluids. Compared with the previous generation, the efficiency of the series is increased by 5% on average and TP has been the national energy-saving product certificated. The series have horizontal and vertical structures to meet different installation requirement. To achieve world-class quality, pump body and impeller are mechanically molded with coated sand, machined with four-axis CNC machining center and finished with electrophoresis. Big pump offer push-pull base for easy maintenance besides standard base
Application
Product Structural Drawing
Product Advantage
Hydraulic Coverage
Product Parameters

Type	Capacity		Head	Speed	Eff.	Shaft Power	Motor Power	(NPSH)r	Weight
	Q		H	n	η	Pa	PM
	(m3/h)	(L/s)	(m)	(r/min)	(%)	(kW)	(kW)	(m)	(kg)
32TP(L)13-0.75/2	7.7	2.1	14.2	2960	48	0.62	0.75	2	43
	9.4	2.6	13.7		51	0.69		2
	11	3.1	13		54	0.72		2.2
	12.1	3.4	12.4		55	0.74		3
	13.2	3.7	11.7		56	0.75		3.2
32TP(L)17-1.1/2	8.4	2.3	18.8	2960	49.6	0.87	1.1	2	47
	10.2	2.8	18		52.9	0.95		2
	12	3.3	17		56.8	0.98		2.5
	13.2	3.7	16.5		57.6	1.03		3.3
	14.4	4	16		57.3	1.10		3.5
32TP(L)22-1.5/2	9.1	2.5	23.7	2960	50.8	1.16	1.5	2	51
	11.1	3.1	23		53.9	1.29		2
	13	3.6	22		57	1.37		3.1
	14.3	4	21.2		58.2	1.42		3.6
	15.6	4.3	20.4		58.3	1.49		3.8
32TP(L)27-2.2/2	9.8	2.7	29.5	2960	46.5	1.69	2.2	2	56
	11.9	3.3	28.5		51.1	1.81		2.4
	14	3.9	27		56.7	1.82		3.4
	15.4	4.3	26		56.8	1.92		3.6
	16.8	4.7	24.8		57	1.99		4
32TP(L)35-3/2	10.5	2.9	37.6	2960	47.4	2.27	3	2	65
	12.8	3.6	36.8		51.8	2.48		2
	15	4.2	35		56.8	2.52		3.3
	16.5	4.6	34.2		57.2	2.69		4
	18	5	32.7		57.5	2.79		4.4
32TP(L)35-4/2	12.6	3.5	38.5	2960	41	3.22	4	2	80
	15.3	4.3	36.7		47	3.26		2
	18	5	35		50	3.43		3.5
	19.8	5.5	34		50.5	3.63		7.6
	21.6	6	32.2		50.8	3.73		12
32TP(L)46-5.5/2	14	3.9	51	2960	42	4.63	5.5	2	92
	17	4.7	49		45	5.04		2.3
	20	5.6	46		51	4.92		7.5
	22	6.1	44		51	5.17		12
	24	6.7	41		49	5.47		15

Product Attributes

Attribute	Attributes	Value	Optional
Installation	Inlet Diameter (mm)	DN32
	Outlet Diameter (mm)	DN32
	Direction of rotation	Clockwise from the motor to the pump
	Entrance orientation	level in
	Exit orientation	level out
	Base form
Motor	Number of motor phases	3
	Rated voltage (V)	380
	Power frequency (Hz)	50	60
	Insulation class	F
	Protection class	IP54	ip55
	Cooling Method	Air-cooled
	Energy efficiency rating	IE3	IE4/IE5A

---
