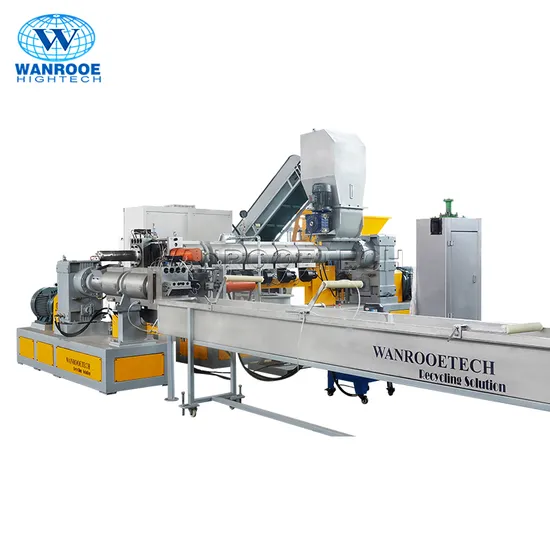

100-1000kg/H Waste PP PE BOPP Plastic Film Jumbo Bag Regrind Plastic Scraps Pelletizer Two Stage Plastic Crushed Granulator Machine

Product Description

100-1000kg/H Waste PP PE BOPP Plastic Film Jumbo Bag Regrind Plastic Scraps Pelletizer Two Stage Plastic Crushed Granulator Machine
Applications:
Double-stage reclaimed pelletizing production line is the ideal equipment for plastic pelletizer, especially for PP, PE film waste, HDPE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, stretch film Non-woven fabrics, woven bags, solid materials recovered, crushed material recovery and granulation. The production line has the advantages of novel design, reasonable structure, stable operation, low noise, low power consumption and high output.
Description:
This plastic granulator machine for waste plastic recycling is used to make plastic flakes into pellets or granules.
And Double stage pelletizing line is especially good for the raw material which contains high moisture, high impurities.
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;
And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.
Process flow:
Screw feeder ( OPTIONAL)→ Force feeder→1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →Water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.
Detailed description of each items:
1.Screw Feeder: convey Plastic scraps into the main machine.
2.1# Extruding system: plasticizing material and exhausting gas.
3.1# High-speed Net exchanging system: filter material impurity, to make production more stable.
4.2# Extruding system: plasticizing material.
5.2# High-speed Net exchanging system and Die-head: Second filter material impurity, to make production more stable.
6.Water ring pelletizing machine: cutting pellets in water.
7.Water tank: cooling pellets.
8. Dewater machine: make pellets dry.
9.Vibration sieve: remove bad pellet and keep good pellet.
10.Air Blower: convey good pellets into silo.
11.Storage silo: keep pellet.
Equipment Lists:
1.Screw Feeder(optional)
2.Force Feeder
3.1# Extruder
4.1# Die head and screen changing device.
5.2# Extruder
6.2# Die head and screen changing device.
7.Water ring cutter
8.Vibrating dewatering machine
9.Vertical dewatering machine.
10.Air drying system
11.Cyclone hopper
Features:
1. Allow free assembling of the screw component, based on raw material type.
2.Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. The main screw has vacuum exhaustion.
5.Water ring granulator machine, attached with dryer.
6. Single screw extruder, with the specially designed screw, barrel, venting system, ensures the good quality of the final products.
7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.

Technical Parameters:

Model	PNHS-85/85	PNHS-100/100	PNHS-130/130	PNHS-160/160	PNHS-180/180
Screw Dia (mm)	85	100	130	160	180
L/D	25-36	25-36	25-33	25-33	25-33
Capacity(kg/h)	120-180	200-250	400-500	450-700	500-1000

Our Service
1. One year guarantee for whole machine.
2.24 hours technical support.
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.

---
