Surface Grinding Machine M618A Ms618A

Product Description

Manual surface grinder M618A /MS618A
1.Features
1)Adopt the exceeding precise class7(P4 level)ball bearing for spindle
2)Bring transmission by synchronous belt,operating simple and convenient
3)3-axis manual operation,X,Y, axis can be electric auto operation
4)High rigidity H-frame column with spindle center to table
5)Enhanced ribbed full cast iron base
6)Enlarged spindle housing for heavier ginding
7)Cartridge W/4 preload class 7(P4)bearing
8)Roller stell balls on linear table ways for easy and smooth longitudinal movements
9)Double-V saddle ways for rigidity
10)Manual lubrication system
2.Specification

Manual surface grinder M618A
Technical Parameters		Units	M618A	MS618A
Max.workpiece to be Ground		mm	500×190×335	500×190×335
( L×W×H)
Max. Grinding Length		mm	500	500
Max. Grinding Width		mm	190	190
Distance From Table Surface To Spindle Center		mm	335	335
Slide way			V-type rail with Steel-ball	V-type rail with Steel-ball
V-type rail with Steel-ball		Kg	200	200
Table Size (L×W)		mm	460×180	460×180
Number of T -Slot		mm×n	14×1	14×1
Cross Feed On Handwheel		mm	0.02/Graduation 2.5/revolution	0.02/Graduation 2.5/revolution
Vertical Feed On Handwheel		mm	0.01/Graduation 1.25/revolution	0.01/Graduation 1.25/revolution
Wheel Size (dia.×width×bore )		mm	180×13×31.75	180×13×31.75
Spindle Speeds	50Hz	rpm	2850	2850
Spindle Motor		Kw	1.1	1.1
Coolant Pump		w	40	40
Minimum of Numerical Display		mm		0.005
Machine Size (L×W×H)		mm	1550×1060×1590	1550×1060×1590
Packing Size (L×W×H)		mm	1060×1170×1870	1060×1170×1870
Gross,Net		T	O.75, 0.65	O.79, 0.69

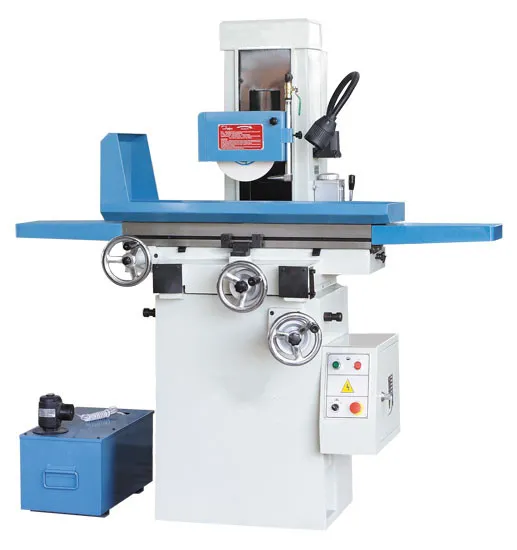

3.Machine photos

---
