Optical Solar Smoke Detector with Testing Button (ES-T601)

Product Description

Product Name
Optical Solar Smoke Detector with Testing Button (ES-T601)
Functions & Features
1. Photoelectric detection mode.
2. Ceiling mounting.
3. Optical Labyrinth.
4. low consumption and long service time.
5. solar-power supply,no external line needed.
6. If smoke volume is over to standard,its not only sight alarming but
also sending signal to host for timing alarm.
7. Low-voltage alarm.
8. Manual testing function.
9. Avoid sensor's drift question.
10.Support NFPA 72 emergency evacuation signals in short buzz mode.
Technical parameter
1. Sensor:Optical Cavity Labyrinth.
2. Working voltage:3V,1400mAH.
3. Operating current:static current <20uA,Alarm current:10-30mA
4. Alarm volume:85db 10ft.
5. sensitivity to smoke:Test value of 3.2% weakness smoke/foot,in accordance with
ul217 standard.
6. Wireless Transmitting Frequency:433Mhz.
7. Wireless Transiting distance:300M in open area.
8. Low-voltage alarm:2.2V±0.2 V.
9. Working environment:-10ºC--50ºC.
10.Testing area:20m2.
Faulty Discovery&Exclusion

faulty phenomenon	failure reasons	failure recovery methods
alarm 43 seconds timly	low battery	change battery
frequency faulty alarm	too much dust inside sensor	clean the dust on interface

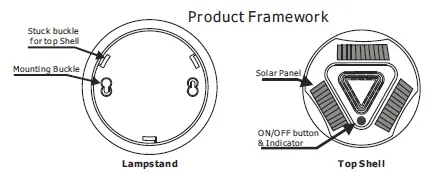

Product Frame Work
Installation Procedure
Installation
Testing
