Good Price Double Colors Printing Napkin Tissue Paper Making machine

Product Description

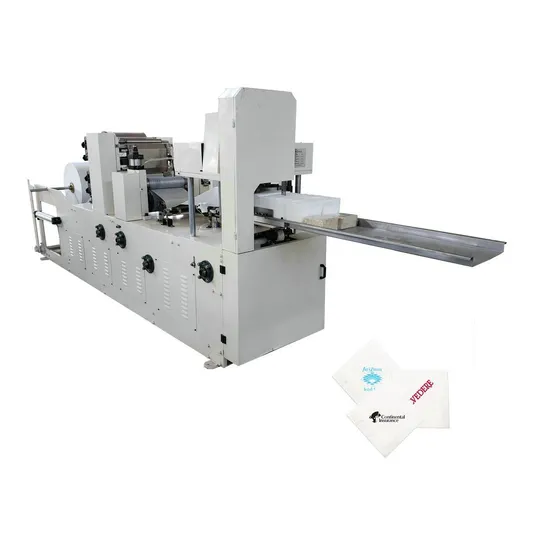

XY-OQ-7000A Good Price Double Colors Printing Napkin Tissue Paper Making Mahcine
Outline:
Napkin Folding Machine is to cut through the paper tray after printing, embossing and automatically folded into a square or rectangular-shaped napkin open. Clear and bright with printing, overlay accuracy, high speed stationary, is the processing of special equipment for high-grade napkins.
Main function characteristics:
1. Transmission belt drive configuration
2. Color printing device adopts flexible printing, the design can be flexibly according to you need replace, use professional color printing anilox string ink roller
3. Pattern matching paper rolling device, pattern significantly
4. Electronic counting dislocation row of output
5. Folding plate and manipulator are folded and formed by a band sawing cutter
6. Other standard models can be customized
Main technical parameters:

Open size of finished products	200*200~250*250mm	300*300~330*330mm	400*400mm
Folded size of finished products	100*100~125*125mm	150*150~165*165mm	200*200mm
Diameter of jumbo roll paper	1200 mm	1200 mm	1200 mm
Diameter of jumbo roll inner core	76.2 mm	76.2 mm	76.2 mm
Production speed	400~500Pcs/min(Depends on machine model)
Color printing	Flexographic printing 1-2 color
Embossing unit	Steel to woolen roller
Counting unit	Electronic counting
Machine power	4.5KW(Depends on machine model)
Overall dimension	5200*(700~900)*1500mm (Depends on machine model)
Weight	About 1400kg	About 1500kg	About 1600kg

Detail pictures:

---
