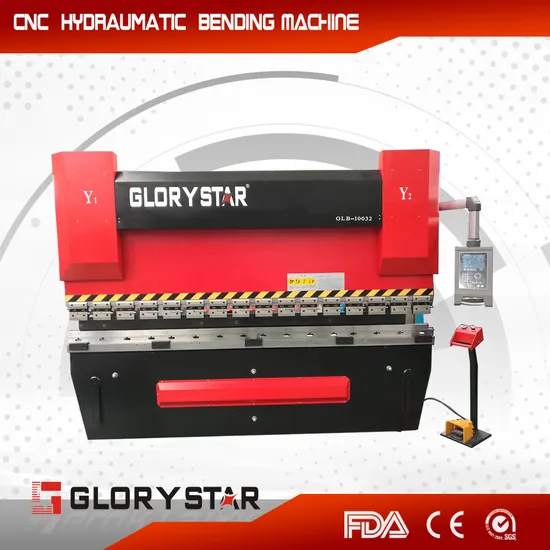

CNC Hydraulic Metal Sheet Press Brake Bending Machine

Product Description

CNC Hydraulic Metal Sheet Press Brake Bending Machine
Technical Data

Model No	Nominal Pressure	Distance Between uprights	Length of Table	Thorat Depth	RAM Sroke	Speed (Times/min)	Max.RAM Open Height	Main Motor	Net.Weight	Overal Dimension
GLB-4015	400 kn	1500 mm	1140 mm	300 mm	160 mm	≥10	400mm	4 KW	3800 kg	1700mm*1600mm*2350mm
GLB-8025	800 kn	2500 mm	2010 mm	350 mm	160 mm	≥8	400mm	7.5 KW	7500 kg	2700mm*1650mm*2360mm
GLB-10032	1000 kn	3200 mm	2700 mm	350 mm	200 mm	≥8	400mm	7.5KW	9300 kg	3500mm*1650mm*2630mm
GLB-16032	1600 kn	3200 mm	2700 mm	350 mm	200 mm	≥9	400mm	15 KW	12000 kg	3500mm*1650mm*2630mm
GLB-16040	1600 kn	4000 mm	3500 mm	350 mm	200 mm	≥9	400mm	15 KW	14000 kg	4200mm*1650mm*2630mm
GLB-20032	2000 kn	3200 mm	2700 mm	400 mm	240 mm	≥9.5	450mm	15 KW	13000 kg	3500mm*1900mm*2750mm
GLB-20040	2000 kn	4000 mm	3500 mm	400 mm	240 mm	≥9.5	450mm	15 KW	15000 kg	4200mm*1900mm*2750mm
GLB-25032	2500 kn	3200 mm	2700 mm	400 mm	240 mm	≥9.5	520mm	18.5 KW	15000 kg	3500mm*1900mm*2750mm
GLB-25040	2500 kn	4000 mm	3500 mm	400 mm	240 mm	≥9.5	520mm	18.5 KW	17500 kg	4200mm*1900mm*2750mm

Product Features
1.Machine frame is heaviest welded con struction,stess released by annealing process, this has minized deflection of the frame.
2.Y axis full closed loop control.
3.Proportional hydraulic compensation system ro prevent deformation.
4.German HEIDENHAIN linear encoder
5.Taiwan HIWIN ball screw and linear guide rail
6. High performance AC Japanese Yaskawa AC servo motors and drives
7.Rich functions CYBELEC/DELEM professional control system.
8.Electro-hydraulic servo synchronization module and pressure module
9.±0.01mm repeat accuracies.
10. ±0.01mm parallelism accuracies.
Applicable Industry
Elevator industry, stainless steel industry, copper, aluminum, decoration industry etc.
Applicable Materials
Stainless steel plate, iron plate, copper plate, aluminum plate and so on.
Optional Accessorise
1.Premium Backgauge-R, Z1-Z2,X Axe as Options Supreme Backgauge 6 axes X1/X2, R1/R2, Z1/Z2
2.Light Curtains or Laser Safe
3.Laser Check bend angle measuring device.
4.Robotic Bending.
About Us:
Dongguan Glorystar Laser Technology Co., Ltd, Sino-German cooperation, focusing on laser technology & applications, after years of continuous innovation and development, has become a well-known large-scale manufacturer of laser equipment, the company owns office building, R&D building, machining shop, painting and welding shop, assembling shop, modern showroom and standard industrial factory.
The company's main products are metal laser cutting machine, non-metal laser cutting machine, laser marking machine, laser welding machine and bending machine. The annual production capacity of 8000 sets of products sold in more than 100 countries and regions.
The company was identified as the national high-tech enterprise, and repeatedly won the Technology Innovation Awards.
As a leader in laser equipment, Glorystar Laser technology Co., Ltd has a complete R&D system, with many domestic famous universities and research institutions to maintain the close optical and technical cooperation, also is Nanyang Institute of Science and Technology Graduate Trainee base.
Products made EU CE certification and the SGS certification, and in all aspects of the incoming, process, machine, shipping and other compliance with ISO quality and environmental management system management guidelines to ensure that the national quality.
Carrying the Global view sight, GLORYSTAR keeps on focusing the laser science and technology to share with you in the future successfully.
Distributors/Agents Wanted and Warmly welcome You Visit US in China.

---
