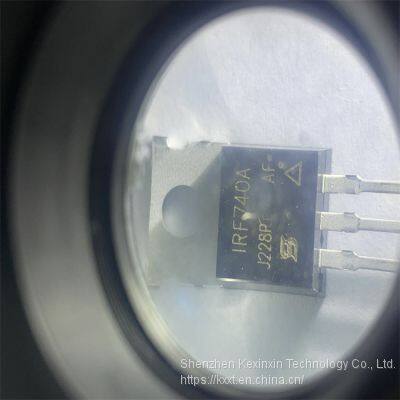

IRF740APBF Vishay Semiconductors MOSFET 400V N-CH HEXFET

Product Details

Product Description

Product Description
Factory
Mfr. #:
IRF740APBF
Manufacturer: Vishay
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220AB-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 400 V
Id - Continuous Drain Current: 10 A
Rds On - Drain-Source Resistance: 550 mOhms
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Vgs th - Gate-Source Threshold Voltage: 4 V
Qg - Gate Charge: 36 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 125 W
Channel Mode: Enhancement
Series: IRF
Packaging: Tube
Brand: Vishay Semiconductors
Configuration: Single
Fall Time: 22 ns
Product Type: MOSFET
Rise Time: 35 ns
factory pack quantiy: 1000
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 24 ns
Typical Turn-On Delay Time: 10 ns
Part # Aliases: IRF740APBF-BE3
Unit Weight: 0.068784 oz

---
