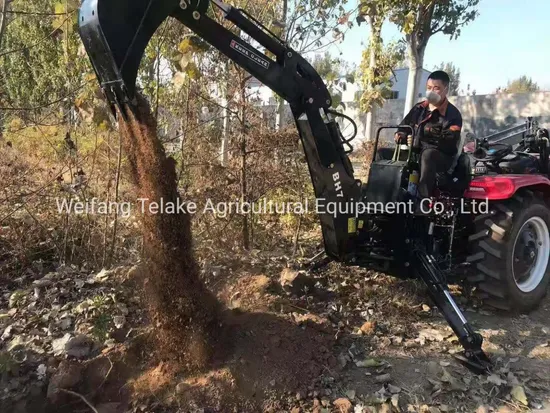

Agriculture Machinery Mini Four Wheel Garden Small Tractor with Excavator Bucket/Tiller

Product Description

Product Description:
TK25-40 Hp series tractor is designed for multiple light works, such as farming, transportation etc.
Equipped with Chinese famous diesel engine, It has the advantage of high cost efficiency and fuel efficiency,
low maintenance cost and good working performance.
Using central console and mature structure, the tractor is easy to control and maintain.
8F+2R gearbox with easy operation and convenient maintenance; Optional single/double action clutches for different needs and operation;
Optional Herringbone tires, paddy tires or other type of tires to meet your needs of working conditions.
Hydraulic power steering( 4WD) makes it easy to control and reduce the labor strength of operator.
Main Technical Specifications:

Model			TK254	TK304	TK354	TK404
Type			4×4 Wheeled Type	4×4 Wheeled Type	4×4 Wheeled Type	4×4
Overall Dimension (mm)	L×W×H		3150x1450x2030	3150x1450x2030	3250x1500x2040	3350×1500×2130
	Tread	Front Wheel	960,1220(ususl)	960,1220(ususl)	960,1220(ususl)	1200 (usual)
		Rear Wheel	960,1160(usual),1200,1300	960,1160(usual),1200,1300	960,1160,1200(usual),1300	1200 (usual)
	Wheel Base		1715	1715	1820	1800
	Min. Ground Base		360(the bottom of transfer case)
Min. Usage Mass(kg)			1400	1400	1600	1500
Engine	Model		Laidong KM385	Laidong KM3T30	Laidong 4L22BT	Laidong 4L23BT
	Type		Vertical, water cooled and 4-stroke
	Rated Power(kw)		18.4	22.1	25.7	29.4
	Rated Rev.(r/min)		2300	2300	2350	2400
	Fuel		Diesel Oil
Tire	Front & Rear Wheel		6.00-16
	Optional Front & Rear Wheel		9.50-24
Clutch			Dry-friction,single stage or Dry-friction,Two Stage
Steering			Hydraulic type
Transmission Box			(4+1)×2 Composed
Suspension Type			Post Positioned Tri-point Suspension Catalogue
PTO	Type and Rev.(r/min)		Post-position, half-independent,540/720
	Spline Size		φ35 Rectangle Spline with 6 teeth

Technology & Innovation:
WeiFang Telake has established a professional R & D team, realized the self-control ability of core components by integrating the industry's
advantageous resources, built a stable quality control system.
Invested tens millions to introduce intelligent mechanization total production line, automatic chassis production line, gearbox processing line and welding
robots, processing centers and other advanced production lines and equipment, to achieve an annual production capacity of 30,000 tractors.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////// Packaging & Delivery:
-Delivery time:20- 30 days.
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Certifications:
Common problems
(1) Are you a manufacturing factory or a trading company?
We are a factory with 20 years of professional production experience in the field of 25hp-240hp tractors, located in Weifang City, Shandong Province, China. Our factory has passed ISO9001, CCC, CE, SGS and BV certification. We also have a quality control department to purchase products for customers. This is why the price of our tractors is so reasonable.
(2) Can we print the logo or company name on your product or packaging?
of course. Your logo can be printed on your product by embossing, self-adhesive or silk-screen printing.
(3) About the price
The price is negotiable. It can be changed according to the options or packaging of the tractor.
(4) Regarding payment or other issues
We accept LC, TT, if you have other questions, please email me or chat with me directly.
Contact
Welcome to our factory
Adhere to the business tenet of "Integrity-based, Quality First", and wholeheartedly provide you with the best products and wholehearted service. We actively cooperate with research institutions and multinational companies to achieve continuous innovation. Weifang Telake Agricultural Equipment CO.,LTD welcomes domestic and foreign customers to visit and guide!
Weifang Telake Agricultural Equipment CO.,LTD
Adress: East of Haifeng Road,South of Cailin Road,Binhai Economic District,Weifang,Shandong,China

---
