CCS, BV Approved Offshore Marine External Fire Fighting FiFi System

Product Details

Product Description

Product Description
Product Description

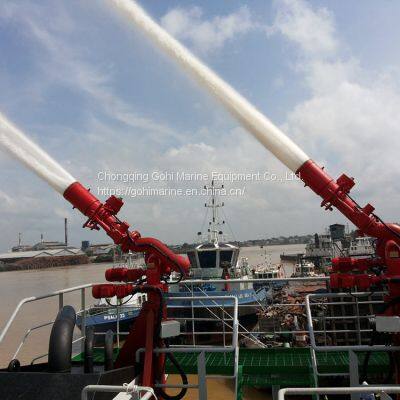

FIFI-1 external fire fighting system is FIFI class 1, the total flow rate must be not less than 2400m3/h(10560GPM). It is usually includes 2*1200m3/h(5280gpm) fire water monitors, 1*2400m3/h(10560gpm) fire pump or 2*1200m3/h(5280gpm) fire pump, 4 hose connections on each side of vessel. And the throw range of the water monitor must be not less than 120meters, the throw height of the fire fighting water monitor must be not less than 45meters. For some additional requirements, it can be coupled with foam proportioner for special fires, fixed water spray systems for protection the vessel hull etc.
Data and capacity of External FIFI System

Class	FiFi 1	FiFiII			FiFi III
No.monitors	2	2	3	4	3	4
Monitor capacity (m3/h)	1200	3600	2400	1800	3200	2400
No.Pumps	1-2	2	2-4		2	2-4
Total Pump capacity(m3/h)	2400	7200	7200		9600	9600/10000
Throw length(m)	120	180	150		180	150
Throw Height (m)	45	110m@70m	70		110m@70m

Sepcification for fire fighting system
1.Fire monitor
Capacity : 300m3/h~2400m3/h
Qty : 1~4sets
Pipe: water pipe and jet nozzle
Medium: water or AFFF
Capacity: Water: 300m3/h~2400m3/h
Opertional type : Electrically operated
Throw length
Water: 120m approx at 11 bar (other throw range is also available )
AFF: 45m approx.
Swivelling ranges
Rotation: 340°
Elevation: -40°to +75°
(other swivelling ranges is also available )
Materials: stainless steel
According to different requirement, the marine external fire fighting fifi system including the following main components:
1. Fire pump set (Diesel engine driven, electrical motor driven)
2. Fire fighting monitor (fire fighting water cannon), it can be used for seawater, fresh water, AFFF etc.
3. Batterfly valves: fire pump inlet valve, fire pump outlet valve, fire monitor inlet valves etc
4. Control cabinet with remote controller
5. Foam inductor (Optional)
6. Water curtain system which is used for protecting the vessel self from the fire (optional）

---
