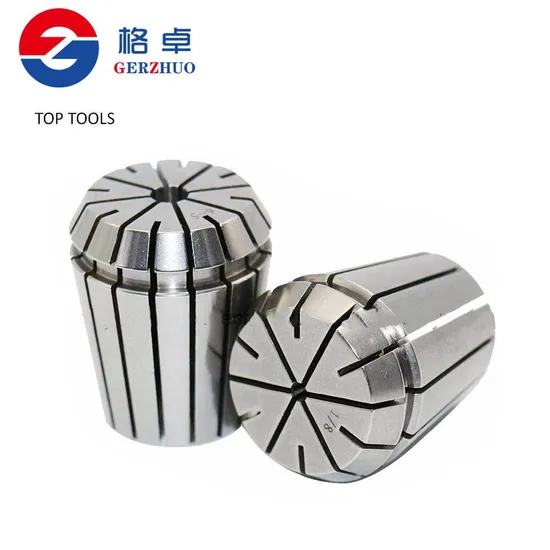

High Accuracy CNC Machine Tool Er25 Collet Made in China
1, Runout of our ER collet are within 0.005mm-0.015mmm
4, Packing:inner packing is plastic or paper box,the outer packing is cartons.
5, Supply two kinds of common accuracy: 0.008mm and 0.015mm. The highest accuracy is up to 0.005mm.
6, Inspection:100% collet inspection.
Used for boring, milling, drilling,tapping, grinding and engraving operation etc.
| Model | Quantity(Pcs) | Dimension |
| ER8 | 9 | 1-5mm(1,1.5,2,2.5,3,3.5,4,4.5,5mm) |
| ER11 | 5 | 3-7mm(3,4,5,6,7mm), if 7pcs, include 1&2mm |
| ER16 | 8 | 3-10mm(3,4,5,6,7,8,9,10mm) |
| ER20 | 6 | 3-13mm(3,4,6,8,10,13mm) |
| 11 | 3-13mm(3,4,5,6,7,8,9,10,11,12,13mm) |
| ER25 | 7 | 4-16mm(4,6,8,10,12,14,16mm) |
| 15 | 2-16m(2,3,4,5,6,7,8,9,10,11,12,13,14,15,16mm) |
| ER32 | 6 | 6-20mm(6,8,10,12,16,20mm) |
| 11 | 4-20mm(4,5,6,8,10,12,14,15,16,18,20mm) |
| 18 | 3-20mm(3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20mm) |
| ER40 | 7 | 6-25mm(6,8,10,12,16,20,25mm) |
| 15 | 4-26mm(4,5,6,8,10,12,14,15,16,18,20,22,24,25,26mm) |
| 23 | 4-26mm(4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26mm) |
Insert groove of collet into eccentric ring of the clamping nut at the mark on the bottom of the nut. Push collet in the direction of the arrow until it clicks in place. Screw nut with collet onto toolholder. We recommend tightening the nut with a torque wrench.
After the nut is unscrewed from the toolholder, press on the face of the collet while simultaneously pushing sideways on the back of the collet opposite the mark until it disengages from the clamping nut.
1.Quality.
2.Large order fast producing ability.
3.True manufacturer directly sales.
4.Good communication satisfy you at the best level.
5.Cooperative spirit cares your marketing strategy.
6.Flexible solutions concerning lower your cost.
7.Non-stop improving on our major, quality and service.
YUCHENG GERZHUO MECHATRONICS TECHNOLOGY Co., Ltd is a competitive private enterprise engaged in production of machine tool parts. Machine tool parts includes varied of series, and full range specification, specialized in advantage of ER collet, tool holders and accessories. We have established long-term friendly cooperation relationships with numerous customers all over the world as following: USA, Sweden, Russia, Spain, France, Italy, Britain, Germany, South-east countries, Latin America countries, Africa countries and so on. We guarantee the security and quality of our product by optimized and centralized product selections, and have built strong partnerships with well-known companies in the industry in China.
More information to company, copy the official website link er-collet.en.made-in-china.com for reference.
