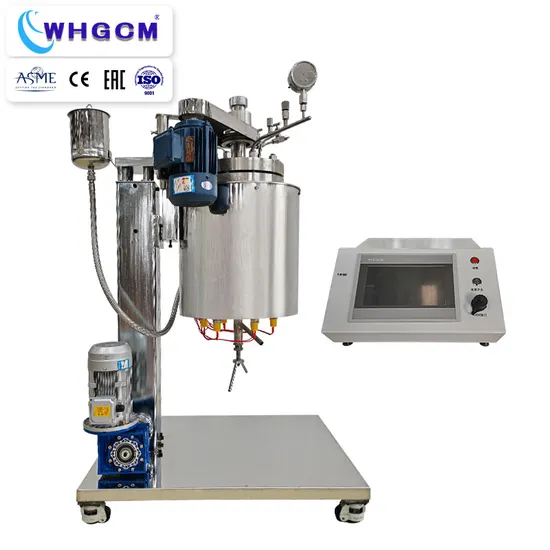

Whgcm 10L Titanium Hastelloy Autoclave High Pressure Lab Reactor with Jacket Heating for Chemical Research

Product Description

Product Parameters

Lab Reactor Technical Parameters
Working Volume (L)	0.1~1	1~10	10~25	25~50
Working pressure(MPa)	Negative pressure 0.1~40 MPa	Negative pressure 0.1~40 MPa	Negative pressure 0.1~30 MPa	Negative pressure 0.1~30 MPa
Working temperature(ºC)	-196~500 ºC
Stirring speed (r/min)	0-1500
Motor power (W)	40~80	80~200	300-750	1100
Heating power(KW)	0.8~1	1~3	3~6	4~9
Heating type	Electric heating, steam or water or thermal oil circulation, far infrared heating.
Discharging type	Discharging from bottom, sampling from kettle lid
Mixer Shaft	Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media.
Stirring type	Paddle, lmpeller, Anchor, Screw, Belt or as per customer request
Seal type	Magnetic seal, packing seal
Reactor material	Contacting material inside kettle mainly use SUS304, SUS316L, SUS321, SUS310, as well as titanium, nickel, zirconium, hastelloy,etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium.
Kettle lid open port	Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100)on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Cooling Coil Faucet for cooling water inlet/outlet.
Controller Device	Equipped with automatic or programmed PlD or PLC to achieve: Temperature display and control, accuracy + 1 °C; Program Control; Mixing Speed display and control; Pressure display and control; Level display and control; Flow display and control; Valve open/close control, etc.

Company Profile
Certifications Customer Visit & Showcase Production Equipment Packaging & Shipping FAQ
1.Are you trading company or manufacturer?
We are professional various reactors customization manufacturer, with ASME CE EAC DOSH ISO Certificates.
2.Pre-Sale Stage
Provide Design Drawing by free and Suitable Equipment Model according to customer's request, for accurate design and quote, please kindly advise below:
1). Working Volume
2). Max Working Temperature
3. Max Working Pressure
4. Reactor inner Contacting material:SS304, SS316L or others?
5.Reactants and property,Whether it is flammable and explosive?
6. With mixer/agitator or not
7.Others more details
3.Production Stage
Whole time report for manufacture status;
Inspection video for quality checking;
Full set Engineering Documents, include User Manual, General Drawing, All Related Test Report, Approval Certificate.
4.After Sale Stage
Life long service for all equipment;
Free spare parts in warranty period;
Discount price for all spare parts after warranty period;
Technical consulting is always for free.
5.Training & Installation
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.

---
