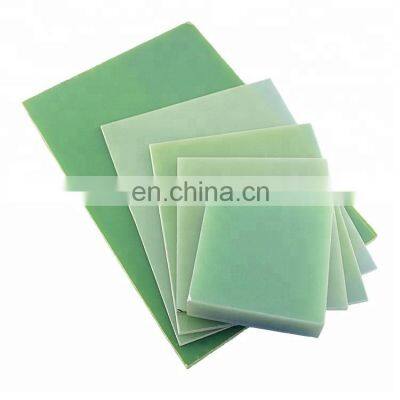

500x500x4mm Customized size fr4 G10 fiber glass sheet with Fire ResistanceEpoxy resin sheet is a composite material composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant (self-extinguishing).It has characteristics of high strength, excellent electrical properties and chemical resistance.
The material is known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions. These attributes, along with good Processing characteristics, lend utility to this grade for a wide variety of electrical and mechanical applications.
Product Details
Product Advantage
1,Good flatness, smooth surface, no pits, standard thickness tolerances.
2,Low water absorption, good moisture resistance and good dielectric properties .
3,Stable electrical insulating properties, good electrical performance in dry or wet conditions.
4,High mechanical strength, good processability Punching, Drilling, Machining and Cutting is available.
5,Good mechanical workability.
6,In high temperature electric performance is stable.
7,High mechanical properties and dielectric properties.
Applications:
Used in mechanical, electrical and electronic insulation structure parts.
Used in Chemical machine parts.
Used in General machines parts and gear, generators, Pads, base, baffle,Generator, transformer, fixture, inverter, motor.
Processing customized:
Factory direct sale, different sizes and parts are available.Please contact with our sales department directly with supplied CAD or 3D drawings, our professional engineering team will quote for you.
Warehouse Show
Product Parameters of FR4 fiberglass sheet
|
|
Material
| Epoxy resin + Glass fiber cloth
|
Fire Resistance
| UL94 V-0
|
Size
| 1020x1220mm, 1220x2440mm,
|
Thickness
| 0.1-80mm
|
Temperature resistance
| ≥130℃
|
Warpage
| 0.3% mm
|
Cutting or processing services
| √
|
Item
| Unit
| Result
|
Voltage Resistance(penetrating)
| KV/mm
| 18
|
Voltage Resistance
| KV/mm
| 12
|
Volume resistivity
| Ω*cm
| 10 ^6
|
Surface resitance
| Ω*cm
| 10 ^6
|
Compressive Strength(Vertical)
| MPA
| ≥350
|
Compressive Strength
| MPA
| ≥300
|
Dielectric constant(50HZ)
| /
| ≤5.5
|
Bending strength
| kg/mm2
| ≥340
|
Anti-impact intensity
| KJ/ m2
| ≥33
|
Density
| g/cm³
| 1.8 - 2.1
|
Our Service
We are the manufacturer of the the fiber glass sheet, and at the same time, we also can offer the cutting and processing service for you. Please sen us your CAD or 3D drawing, we can check it and quote you soon.
Packing & Delivery
Certifications
Contact Us
Please send us your inquiry with the information such as size, thickness, color, quantity, and we can quote you soon. Thank you!
We have the Green FR4 Fiberglass sheet, Black FR4 Fiberglass sheet, ESD Fiberglass sheet, G10 fibergalss sheet, 3240 Yellow epoxy fibergalss sheet, fibergalss rod, etc. You can tell me where will you use the products, we will make a professional choice for you!
>>
