Installation Robot Manipulator Vacum Glass Lifter Mini Crane 1000kg Lifting Equipment

Product Description

Glass Lifters supplier support OEM&ODM service

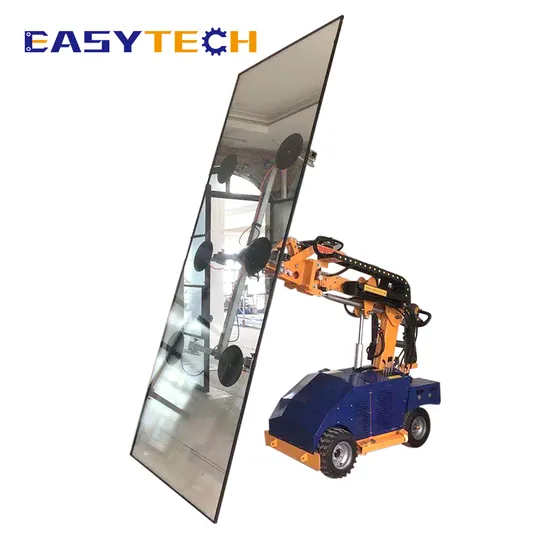

WSR series are used for the installation of glass curtain wall, aluminum alloy decorative board, concrete wall prefabricated parts, marble and other plates outside the building or inside the building floor. Different specifications and load models of WSR series are designed according to the installation requirements of working conditions and the weight of plates. WSR series electric handling trolley is the first glass installation truck developed by our company that integrates grasping, walking, lifting, turning and rotating functions. The traditional glass spreader needs to use tower crane or large crane to install the glass plate, which has low cost and low safety. This series of glass installation car is small and clever, urgent multi-function in one, can be specially equipped with remote control remote operation; And it can enter the engineering elevator to install the glass curtain wall indoors, which greatly improves the efficiency and safety of operation.

Model NO.	EST-600	EST-800L	EST-800/ES
Maximun loads	600kg/400kg	800kg/600kg	800kg
Batteries	2*DC12V,150Ah	2*DC12V,150Ah	2*DC12V,160Ah
Endurance time	20 hours	20 hours	20 hours
Charging time	8 hours	8 hours	8 hours
Charging power	AC 110-220V	AC 110-220V	AC 110-220V
Driving motor	AC,2.2KW	AC,2.2KW	AC,2.2KW
Front wheels	2*(d)450*(w)205mm	2*(d)450*(w)205mm	2*(d)450*(w)205mm
Front wheels material	Foam filled solid type	Foam filled solid type	Foam filled solid type
Rear wheels	2*dia.400mm, solid rubber	2*dia.400mm, solid rubber	2*dia.400mm, solid rubber
Maximun lifting height	3600mm	3600mm	4200mm
Hydraulic station	1.2kw	1.2kw	1.2kw
Lifting	By 1*cylinder	By 1*cylinder	By 1*cylinder
Extension cylinder	By 1*cylinder	By 1*cylinder	By 1*cylinder
Tiling cylinder	By 1*cylinder	By 1*cylinder	By 1*cylinder
Rotation hydraulic motor	1piece, endless rotation	1piece, endless rotation	1piece, endless rotation
Side-turning	By cylinder,22.5*on two sides	By cylinder,22.5*on two sides	By cylinder,22.5*on two sides
Parallel moving	By clinder,150mm	By clinder,150mm	By clinder,150mm
Vaccum pump	2 pump,DC24V,60W,35L/M	2 pump,DC24V,60W,35L/M	2 pump,DC24V,60W,35L/M
Vacuum circle	Dual circles	Dual circles	Dual circles
Vacuum cups	6* Dia.300mm	6* Dia.400mm	6* Dia.400mm

The SR400 is divided into mini, rear drive and front drive. It is the smallest model in the WSR series, especially suitable for indoor glass installation, and can choose front drive or rear drive specifications according to site road conditions. As well as the plate size of different models, WSR400 series is the lowest price of all models. The most cost-effective.



√ All parts are wraped in poly paper and marked. √ plywood case with tray and frame to support.
√ With shipping mark on the case. √ Machine coated by paint anti-rust and anti-scratch

FAQ

1.Are you a factory or trading company?

We are manufacturer of metal sheet lifters, glass lifters, crane lifters, auto feeding riveter, Spin Press Riveting Machines and welding machine.

2.How can I get the price?

-We usually quote within 24 hours after we get your inquiry. -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

3. Can I buy samples placing orders?

-Yes.Please feel free to contact us.

4.What is your lead time?

-It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.

5.What is your payment term?

-T/T, Western Union, MoneyGram, and Paypal. This is negotiable.

6.What is the shipping method?

-It could be shipped by sea,by air or by express(EMS, UPS, DHL, TNT, FEDEX and ect). Please confirm with us before placing orders.

7.How do you make our business long-term and good relationship?

-1. We keep good quality and competitive price to ensure our customers benefit ; -2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

---
