Um400d Swing Milling Head Universal Milling Machine

Product Description

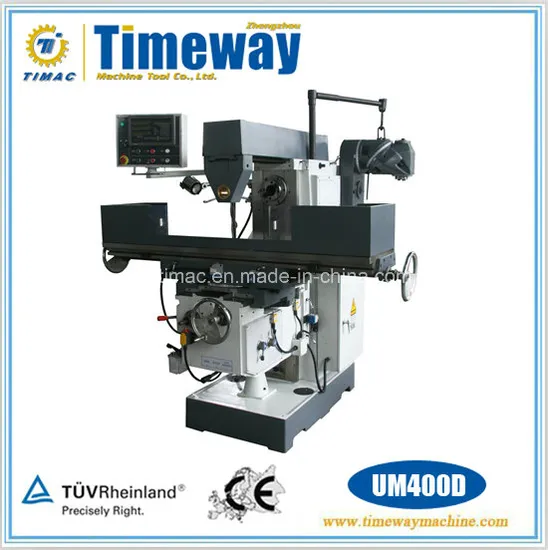

Swing Mill Head Universal Milling Machine
UM400D UM360D
Features:
All 3-axes with automatic and rapid feeds.
Digital readout is optional, DRO electrical operation button one-piece operation station.
Mechanical power feed on X/Y/Z axes (8steps), rapid feed speed 1300mm/min on the X-axis, 940mm/min on the Y-axis, 350mm/min on the Z-axis.
Equipped with universal milling head and worktable swivels ±45°.
Wide square guideways on X/Y/Z-axis.

Technical Parameter

Specification	Unit	UM400D	UM360D
Spindle taper	-	ISO50(H) ISO40(V)	ISO50(H) ISO40(V)
Distance from spindle center to table surface	mm	30-510	30-510
Spindle speed range	rpm	60-1800(12steps)	60-1800(12steps)
Table size	mm	1700*400	1700*400
Max. rotation angle of table	deg	±45°	±45°
Table manual feeding travel(X/Y/Z)	mm	1100*390*500	900*390*500
Table power feeding travel(X/Y/Z)	mm	950*350*450	860*350*450
Longitudinal feeding speed of table	mm/min	16-355(8steps)	25-530(8steps)
Cross feeding speed of table	mm/min	16-355(8steps)	16-355(8steps)
Vertical feeding speed of table	mm/min	16-133	6-133
X-axis rapid feed speed	mm/min	1300	1300
Y-axis rapid feed speed	mm/min	940	940
Z-axis rapid feed speed	mm/min	350	350
Feed motor power	kw	1.1	1.1
Max. weight of workpiece	kg	500	500
T-slot(Number/width/distance)	mm	3/18/70	3/18/70
Vertical guideway type	-	Rectangular guideway	Rectangular guideway
Cross guideway type	-	Rectangular guideway	Rectangular guideway
Longitudinal guideway type	-	Rectangular guideway	Rectangular guideway
Main motor power	kw	4	4
Coolant pump power	w	90	90
N.W/G.W	kgs	2300/2450	2100/2250

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
