Plate Exposure Packing Equipment

US$899.00

5-49 Pieces

US$799.00

50+ Pieces

Basic Info.

Model NO.

Plate Exposure Packing equipment

Page

Single Face

Automatic Grade

Automatic

Product Type

Chemicals

Proximity Exposure

Vacuum Contact

Feature Size

2um

Exposing Area(mm)

1000*800/1150*950/1350*1100**mm2

Light Source

2-3kw

Vacuum System

High Speed Dual-Loop Vacuum-Exhausting System

Exposure Uniformity

97%

Exposure

Major Exposure and Second Exposure

Power Supply

220V/380V50hzv

Electric Phase

1pH/3pH

Net Weight (Kg)

300

Deliver Time

1month

Transport Package

Carton and Pallet

Specification

2300*1400*1300mm

Trademark

SHMECO

Origin

China

HS Code

8442302900

Production Capacity

50000/1 Year

Product Description

Specifications 1) Solid and environment-friendly full-cover metal machine frame
2) Three drawers for stores and standby plates

Function

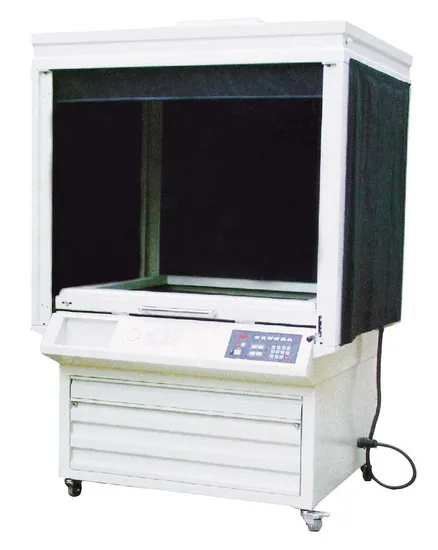

A contact exposure frame, or printing down frame, or plate exposure is contact imaging device used for making the printing plates. The pressure, both atmospheric pressure and mechanical pressure, makes the film and the plate contacting tightly so as to let the photochemical reaction transfer the original image on the film precisely onto the printing plates.
Product features

1. Solid and environment-friendly full-cover metal machine frame prevents UV light from leaking out.
2. Micro computer control (manual or automatical) 99 sets of data can be selected. Multidigit LED displaying.
3. Three drawers for stores and standby plates.
4. UV light integrator assures comprehensive scanning.
5. Multiple exhausting system and multistep exposure system selects multi-exposure according to different materials and eliminates tape track.
6. Pre-vacuum-exhausting, enhanced vacuum exhausting, exposure and enhanced exposure.
7. Anti-electrostatic rubber pads and air-intake all around assures comprehensive exhausting with high efficiency and speed.
8. Yellow safe work light.
9. Long-time-lasting constant metal-halide lamp, 5KW.(25%,50%,100% light intensity for option)
10. Strong cooling air fan assures the normal operation life of glass and lamp.
11. Highquality lamp initiates exposure with parallel light spectrum and assures the quality of printing down by Superluck full cover printing down frame.

Technical spectification

Model	EXPOMAC offset plate exposure
Model	CSHF122E	CSHF135E	CSHF145E	CSHF180E
Exposing Area(mm)	960×1200	1060×1350	1200x1450	1500×1800
Light Source	3KW violet lamp (5KW violet lamp is optional)
Vacuum System	high speed dual-loop vacuum-exhausting system
Vacuum Degree	760mmHg (30inHg)
Exposure Uniformity	97%
Vacuum Exhausting	preliminary vacuum exhausting and major vacuum exhausting
Exposure	major exposure and second exposure
Power Supply	220V/380V 50/60HZ 32A single phase/3PH
Net Weight (kg)	270	320	360	385
Gross Weight(kg)	345	430	450	480
Reflection Glass(mm)	1348x1093x5	1597x1343x8	1450x1690x8	1990x1557x8
Rubber Pad(mm)	1348x1093x3	1597x1343x3	1450x1690x3	1990x1557x3
Pressure Shaft Bearing Limit(kg)	90	110	115	120
Machine Size(mm)	1570x1230 x2280	1820x1480 x2360	1440x2050 x2100	2210x1700 x2480
Packing Size(mm)	1650x1450 x1200	1900x1600 x1200	1520x2350 x2400	2290x1820 x1200

Contact information Vivien
ChangShu Evergrande Imp&Exp Co.,Ltd.
No.2 DianHu Road,ChangShu,JiangSu, 215500, China,

Mob:0086 15150359653

FAX:+86-512 527 068 33
