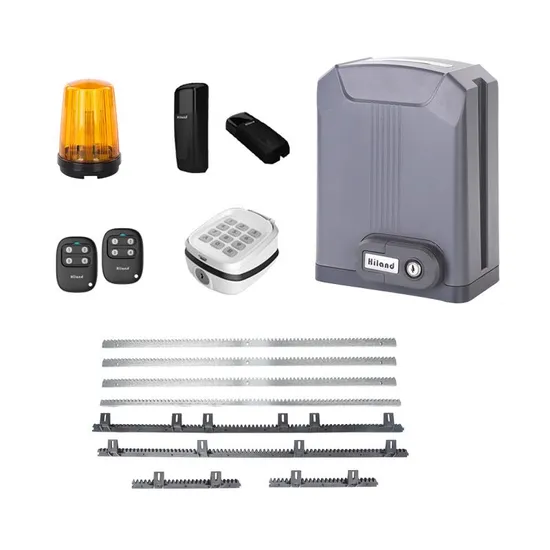

2023 Hiland New Design Sliding Gate Opener Slg6280X

Product Description

Product description

Model	SLG62801	SLG62802	SLG62803	SLG62804
Power supply	110VAC/50	110VAC/50	220VAC/50Hz	220VAC/50Hz
Motor power	280W	280W	280W	280W
Gate moving speed	13m/min	13m/min	13m/min	13m/min
Maximum weight of gate	600Kg	600Kg	600Kg	600Kg
Remote control distance	≥50m	≥50m	≥50m	≥50m
Remote control mode	Single button mode / Three button mode	Single button mode / Three button mode	Single button mode / Three button mode	Single button mode / Three button mode
Limit switch	Magnetic limit	Spring limit switch	Magnetic limit	Spring limit switch
Noise	≤56dB	≤56dB	≤56dB	≤56dB
Output torque	14N.m	14N.m	14N.m	14N.m
Output shaft height	46mm	46mm	46mm	46mm
Frequency	433.92 MHz	433.92 MHz	433.92 MHz	433.92 MHz
Working temperature	-20°C - +70°C	-20°C - +70°C	-20°C - +70°C	-20°C - +70°C
Package weight	10.10Kg	10.10Kg	10.10Kg	10.10Kg

Installation drawing
Safety Instruction
Please ensure that the using power voltage matches with the supply voltage of gate opener (AC110V or AC220V); kids are forbidden to touch the control devices or the remote-control unit. The remote-control unit is controlled by a single button mode or three button mode (please refer to the instructions of the remote control in accordance with the actual gate opener type). The indicator light on the remote-control unit will flicker when the button on it is pressed. Main engine and gate can be unlocked by disengagement wrench and the gate can move with manual operation after disengagement. Please ensure that no one is around the main engine or gate when the switch is operated and it is usually demanded to examine the stability of installation. Please temporarily stop using if the main engine needs repairing or regulation.
Our Exhibition
Company profile
Certification
CE-SLG5280X-LVD
Packing and shipping
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;2.What can you buy from us?
Transmitter,Tubular Motor Receiver,Sliding Gate Opener,Garage Door Opener,Photocell3. Why should you buy from us not from other suppliers?
Hiland is professional designer and qualified manufacturer of the automatic door control systems.We have 15 years experience Wehave sliding/garage/swing/rolling shutter opener and control systems,transmitters,receivers,photocell,flash lamp,keypad etc.Q4.How can i get a price of needed garage door opener?
A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.Q5.We want to be your agent of our area. How to apply for this?
A: Please send your ideal and your profile to any e-mails of us .Let's talk more.

---
