12L HDPE Jerry Can Full Automatic Blow Molding Machine

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

Automatic Extrusion Blow Molding Machine DSB80-12L
Automatic Extrusion Blow Molding Machine DSB80-12L Product: 10 L HDPE Jerry cans
Power supply: 380/220v 50/60 Hz Tri-phase
Output capacity:10 L: 90~110 pcs/h
Layer: Single layer
Lever line system: Available
Parison control: MOOG 100 points
Max volume: 12L (Single die head)

Basic parameters	Suitable material	PE.PP,PVC,PS,PETG,so on
	Max volume	12L
	Output capacity	90~110 PCS/H
	Size	4.4×2.4×3.1(M)
	Weight	8.3T
system	Specification	Parameters	Note
Plasticizion system	Summarize	High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
	Reducer	Hard finishing,High intension,Low noise reducer
	Screw 1	∮80mm,L/D ratio 25,130kg/h 38CrMoALA	Cooling system available
	Heating Zone	4 Aluminum Heater	Automatic heating
	Heating power	10KW/H
	Cooling Fan	Separate cooling system for heaters	Automatic cooling
Extrusion system
	Summarize	High-grade alloy steel, center feeding
	Die head number	1
	Center distance of die heads	/
	Max die mouth	∮320mm
	Extruder Motor	30kw SIEMENS MOTOR

Clamping system
	Summarize	High intension, rigidity, center mold locking, stable mould opening and advanced clamping system
	Clamping force	270 KN
	Distance between platens	450~950mm
	Mould template	680× 660

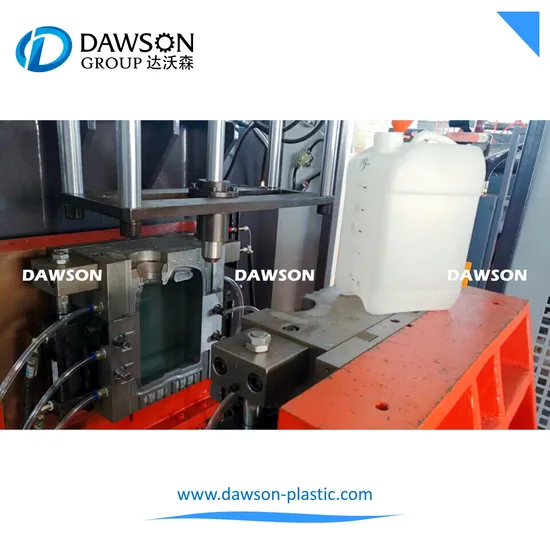

	Mould material	S50C/Aluminium with beryllium copper

Service Process
1.Communication
Good communication with our customers to know the target product detais, output demands, confirm the most suitable blow molding machine models and provide whole project quotations.
2.Mould design
After confirmed the product, our engineers will provide the professional 3D drawing as per your samples, and we can also help you design the bottles as per your own idea or based on our own samples.
3.Drawing confirmation
After finalizing the drawings, we will send to you for approval, only after your approval& signature we will officially start the mould& all project.
4.Machine and mould production
After customer confirm and sign the drawing, we will start the production proces, from sheet-metal process, CNC fine machining, machine assembly, painting, to electrical installing, machine& mould testing, product testing...
5.Testing
We provide sufficient raw materials for each customer's project, to make enugh testing in our factory for both machine and moulds. It will 100% guarantee that there is no any problem before delivery to customer's factory.
6.Product inspection
After mould tested, we will do inspections to dimensions, appearance, cap sealing, thickness, filling lever, drop testing, leakage testing, screw testing...so on, to ensure the finishing is 100% as per original sample.
7.Sending samples
After mould tested, we will send the samples to our customer for approval, also will attach a testing report of machine& mould, to make our customer know parameters like cycle time, production capacity, botttle weight, thickness...so on.
8.Packing delivery
Blow molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos of whole delivery will be sent to our customers for reference.
9.Customer acceptance
After customer received our machine, just arrange to prepare the air, water& electric connections. Then arrange 2~3technical people who had experiences in plastic machinery filed, especially blow molding machine or injection molding machine. They will be trained by our engineers later.
10.Installation and training
We will send the engineers to customer's factory, to test run the machine until it is running in normal state. Customer will bear the round-trip air tickets, accommodating, hotel and technology fee. We will also help customer training their operator how to operation and maintenance machines, make sure they can operate our machine independently.

---
