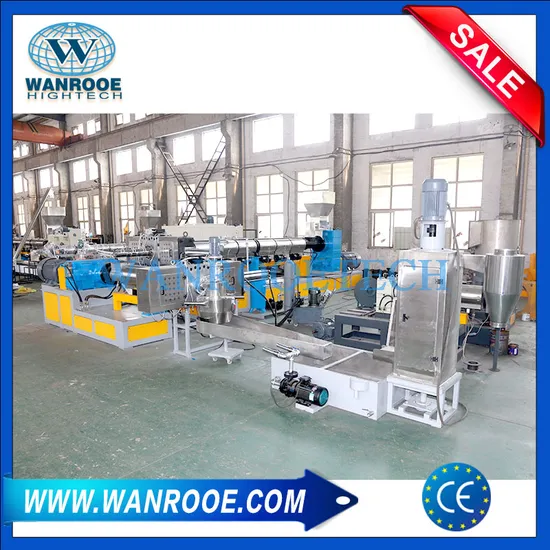

Double Stage Waste PP PE Film Regrind Material Pelletizing Machine

Product Description

Double Stage Waste PP PE Film Regrind Material Pelletizing Machine
Applications :
Double-stage reclaimed pelletizing production line is the ideal equipment for plastic pelletizer, especially for PP, PE film waste, HDPE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, stretch film Non-woven fabrics, woven bags, solid materials recovered, crushed material recovery and granulation. The production line has the advantages of novel design, reasonable structure, stable operation, low noise, low power consumption and high output.
Description:
This plastic granulator machine for waste plastic recycling is used to make plastic flakes into pellets or granules.
And Double stage pelletizing line is especially good for the raw material which contains high moisture, high impurities.
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;
And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.
Process flow:
Screw feeder ( OPTIONAL)→ Force feeder→1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →Water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.
Detailed description of each item:
1.Screw Feeder: convey Plastic scraps into the main machine.
2.1# Extruding system: plasticizing material and exhausting gas.
3.1# High-speed Net exchanging system: filter material impurity, to make production more stable.
4.2# Extruding system: plasticizing material.
5.2# High-speed Net exchanging system and Die-head: Second filter material impurity, to make production more stable.
6.Water ring pelletizing machine: cutting pellets in water.
7.Water tank: cooling pellets.
8. Dewater machine: make pellets dry.
9.Vibration sieve: remove bad pellet and keep good pellet.
10.Air Blower: convey good pellets into silo.
11.Storage silo: keep pellet.
Equipment Lists:
1.Screw Feeder(optional)
2.Force Feeder
3.1# Extruder
4.1# Die head and screen changing device.
5.2# Extruder
6.2# Die head and screen changing device.
7.Water ring cutter
8.Vibrating dewatering machine
9.Vertical dewatering machine.
10.Air drying system
11.Cyclone hopper
Features:
1. Allow free assembling of the screw component, based on raw material type.
2.Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. The main screw has vacuum exhaustion.
5.Water ring granulator machine, attached with dryer.
6. Single screw extruder, with the specially designed screw, barrel, venting system, ensures the good quality of the final products.
7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.
Technical Parameters

No.	Equipment List
1	Belt conveyer
2	Crushing barrel
3	Extruder
4	Die head and screen changing device
5	Water ring cutter
6	Vibrating screen
7	Vertical dewatering machine
8	Air drying system
9	Cyclone hopper

Main Specifications:

Model	Extruder	Screw diam.(mm)	L/D Ratio	Power(kw)	Capacity (PE) (kg/h)	Capacity (PP) (kg/h)
PNHS-100	SJ100/33	100	33:1	210	280-350	250-300
PNHS-130	SJ130/33	130	33:1	300	480-550	400-480
PNHS-160	SJ160/33	160	33:1	370	650-750	550-650
PNHS-180	SJ180/33	180	33:1	460	800-1000	750-850

Our Service
1. One year guarantee for whole machine
2.24 hours technical support
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.

---
