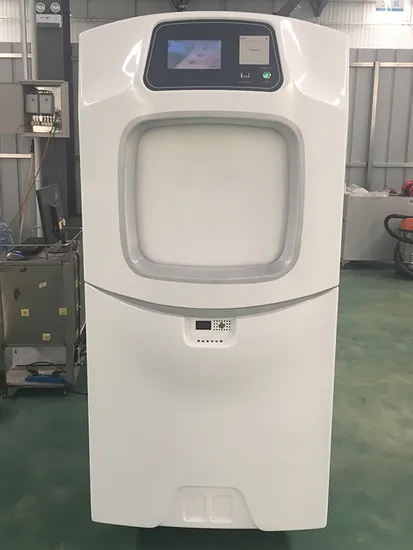

Sada Medical Low Temperature Plasma Sterilizer for Surgical Instruments

Product Description

H2O2 Hydrogen Peroxide Low-temp Plasma Sterilizer Product Parameters

Product Model:	SD-D100L, SD-D130L, SD-P190L
Product Type:	Automatic door
Sterilization Agent:	60% H2O2 Solution
Temperature at sterilization:	50 ºC ± 5 ºC
Working pressure	-60pa
Gas consumption	1 capsule for short cycle /2capsual for long cycle
Chamber material	Aluminum alloy
Machine Cover material	ABS plastic
Sterilization Time	Short cycle normal sterilization cycle: 35min
	Long cycle enhanced sterilization cycle: 55min adjustable
Lifting Door	Mandril-drive auto overhead door with realiable sealing function and safe lock device to guarantee personal safety
Full automatic control system	Siemens PLC , touch screen control , fully automatic system.
Display condition	It shows Chamber pressure and temperature, processing phases and alarm errors.
Sterilization program	Preheating stage, vacuuming stage, injection stage, diffusion stage, plasma generation stage, ventilation stage
Printer	Bulit-in thermal printer, real-time print out data ;USB interface available for historical data download.
Capacity	100L, 130L, 190L
Power supply	220V/380V 50HZ/60HZ

Product Description H2O2 Hydrogen Peroxide Low-temp Plasma Sterilizer
Hydrogen peroxide low-temp plasma sterilizer can not only sterilize metal medical devices at low temperature, but also non-metal medical devices at low temperature. Through the diffusion of hydrogen peroxide in the sterilization chamber, the hydrogen peroxide is "stimulated" into a plasma state to sterilize medical devices.
By combining with plasma, hydrogen peroxide vaporation can sterilize medical instruments and materials safely and rapidly without any toxic residues.
All stages of the sterilization process are operated in a dry and low temperature environment, so it will not damage the instruments sensitive to heat or water vapor, be applicable to both metal and non-metal instruments, and can sterilize the parts of instruments that are difficult to reach (not easy to diffuse), such as hemostatic forceps hinge.

Detailed Photos
SADA MEDICAL Quality Standards:
ISO 9001:2015 Quality Management Systems
EN ISO 13485:2016 Quality Management System - Medical Devices
Catalog, Brothures and User Manual Please refer below:
SADA MEDICAL SITE
Sada Medical is a professional supplier of steam autoclaves, low temperature plasma autoclaves, ethylene oxide sterilizers, we have exported to all over the world with affordable prices.
If you're interested in our products, please feel free to contact us by Below Contact Form, looking foward to hearing from you soon.
Company Profile Hefei Sada Medical Equipment Co., Ltd has more than 10 years experience since 2012 located in Anhui, China.
We are a professional sterilization equipment manufacturer and leading supplier in China.For more than ten years, we engage in offering our customer one stop service in medical sterilizer, supplying competitive price and quality products to more than 1000 hospitals clinics, research institutions and universities.
Our main market is in South Est Asia, South America, Africa, West Europe & America. We guarantee the transfer safety and also the goods quality for customers. All our products we will supply 2 years warranty for all customers. And we will supply online training for our medical devices. We supply OEM/ ODM service for customers. With the rapid development of SADA Medical, we build strong technical R&D team and sales team.
We satisfy our customers by offering comprehensive support, purchase convenience and intime after-sales service, and we are ready to serve more and more customers in the world, no matter you are distributor or end user, we are eagerly to cooperate with you and be your long term partner.
Our payment term is Telegraphic Transfer in advance,Western union, MoneyGram,Paypal,ect.
FAQ 1.What is your warranty for the products?
We offer 2 years warranty and lifetime service!
2.What is your after-sales service?
We provide technical support through operating manual and video; Once you have questions, you can get our engineer's prompt response by email,phone call,or training in factory. If it's hardware problem, within the warranty period, we will send you spare parts for free, or you send it back then we repair for you freely.
3.What is the delivery time?
We have shipping agent,we can deliver the products to you by express,air freight,sea.Below is some delivery time for your reference:
Express:UPS,DHL,TNT,ect (door to door),7-10 days
Hand carry:Send to your hotel,your friends,your forwarder,your sea port or your warehouse in China.
Air freigt(from airport to airport):3-10 days
Sea(any sea port):Mombasa(30 days), Port Kelang (12 days),Manila(10 days), Lagos(45 days), Guayaquil(45 days)
4.Can you customize?
Yes, Customized for Pannel, Voltage
5.How to place the order?
Send Proforma Invoice before order be placed, and arranging production after payment.
6.What is your lead time of the product?
Portable type 5-10days, Table top and Vertical type 10-25days, Horizontal medium type 10-20days, Large type 30-35days

---
