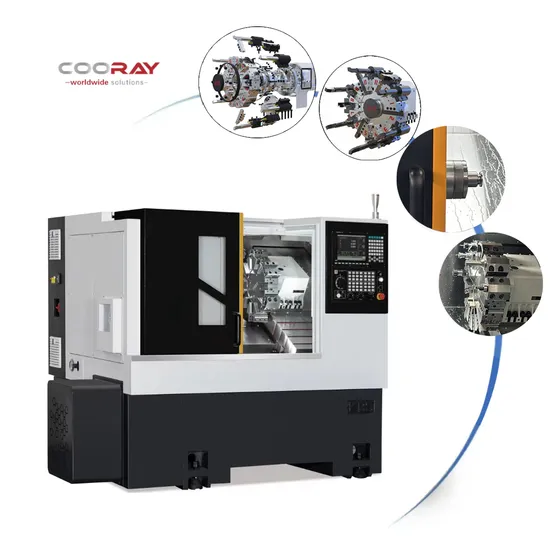

| Equipment technical data ·CRL200TL |
Item
| Name | Unit | CRL200TL |
| Process capability | Diameter of bed rotation | mm | φ500 |
| Maximum machining diameter | mm | φ350 |
| Maximum processing length | mm | 350 |
| Maximum bar through hole diameter | mm | φ51/65 |
| Tailstock | / | Programmable(optional) |
| Axial | X-axis stroke | mm | 205 |
| Z-axis stroke | mm | 340 |
| X/Z axis rapid speed rate | m/min | 20 |
| X/Z axis motor power | kw | 2.4 |
| X/Z repeated positioning accuracy | mm | ±0.0025 |
| Principal axis | Maximum spindle speed | rpm | 3500 |
| Card size | inch | 8 |
| Spindle nose model | / | A2-6 |
| through hole diameter | mm | φ52/φ66 |
| The diameter of the inner hole of the | mm | φ66/ φ82 |
| s(s)pin(n)dle(e) motor power | kw | 11 |
| Knife tower | Knife tower model | / | 12station BMT45 |
| Stations of knife tower | / | 12 |
| Size of outer diameter blade handle | mm | 25*25 |
| Inner diameter of blade handle | mm | φ32 |
| Machine structure | bed structure | / | Flat rail+ramp |
| X/Z axis rail | mm | 35/45 pin roller |
| X/Z lead screw | mm | 32/32 |
| Boundary dimensio | Ength*width*height | mm | 2300*1700*1700 |
| Power source | Total power of machine tool | KW | 20 |
| Weight of machine | / | KG | 3500 |
