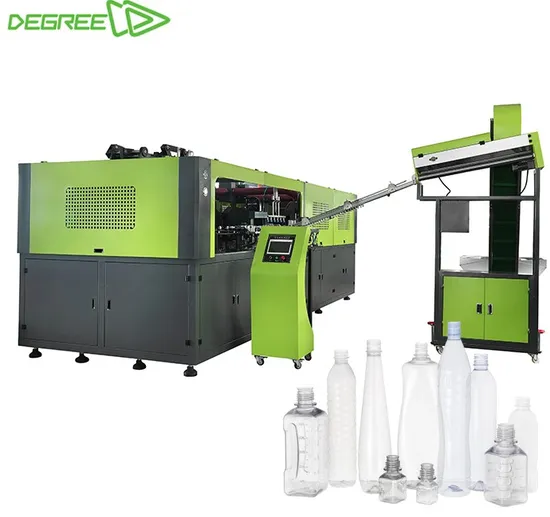

Plastic Making Bottle Application Pet Bottle Blowing Machine Plastic Bottle Making Machine

Product Description

Product Description
What is pet botttle blow molding machine?
pet botttle blow molding machine is one kind of two step stretch type bottle making plant.
pet botttle blow molding machine is suitable to produce plastic bottles based on PET raw material.
pet botttle blow molding machine is widely used to produce carbonated soft drinks
bottles, mineral water bottles, cooking oil bottles, medicine bottles, cosmetic bottles, wide mouth Jars and hot filling juice bottles etc

Product Parameters

MODEL	DEG-A6-1L
OUTPUT	Based on sample	6500PCS/H
CONTAINER SPEC.	Bottle body diameter	20mm-80mm
	Body height	50mm-245mm
	Neck size	15mm-38mm
MOLD	Cavities	6cavities
MACHINE POWER	Power Voltage	380v 50HZ
	Install power	60kw
	Actual power	40kw
AIR SUPPLY	Low air compressor	2.0m3/min 1.0MPa
	High air compressor	3.6m3/min 3.0MPa
	Air dryer	2.0m3/min 3.0MPa
COOLING WATER	Cooling water capacity	45L/min
MAIN MACHINE DIM.	L*W*H	4500*2000*2100mm
	Weight	4500kg
PREFORM LOADER DIM.	L*W*H	1900*1100*2200mm
	Weight	350kg

Certifications
Packaging & Shipping
Company Profile
FAQ
Q1 :What kinds of product you supply?
A1: Blow Molding Machine, Extrusion Molding Machine ,Preform Mould ,Cap Mould, Blow Mould,Filling Machine, Packaging Machine, Plastic Products, etc
Q2: How to tell your enquiry ?
A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
After Sales Service

---
