High-Precision CNC Drilling Machine for Steel Beams and Tubes

Product Description

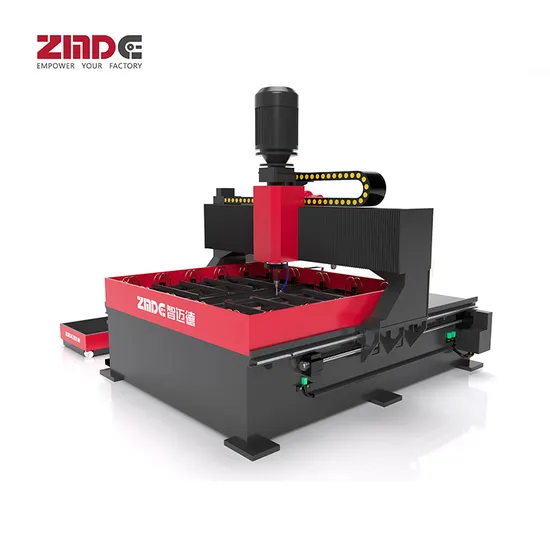

ZMDE Precision CNC Plate Drilling Equipment for Steel Automatic Steel Structure Tube I H Beam Cnc Drilling Machine


>Maximize Savings with Cost-effective Equipment <
1. Crafted from robust materials, our equipment boasts a low failure rate, significantly reducing maintenance costs. Each component-ball screw, linear guide vice, hydraulic parts, electrical parts, servo motor, frequency converter-is sourced from industry-renowned brands.
2. Enjoy the convenience of a CRT display with automatic chip removal, which cuts down on manual cleaning time and associated costs.
3. Benefit from the high precision of our equipment, ensuring a high qualification rate of workpieces and effectively lowering consumable costs.
>Effortless Operation and Exceptional Productivity <
1. The intuitive human-machine interface provides a clear, visual experience, automatically generating machining programs.
2. Our system is controlled by CNC and PLC, guaranteeing precise positioning every time.
3. Workpieces are securely clamped by hydraulic clamps, with operators managing them via a convenient, labor-saving foot switch.
4. The table is equipped with 12 fast hydraulic clamps, allowing for the simultaneous clamping of four workpiece groups.
5. Small workpieces can be clamped at the four corners of the table, drastically reducing production preparation time and boosting efficiency.
6. The ability to clamp small workpieces at the table's corners further shortens the production preparation period and enhances efficiency.
> Uncompromising Quality and Versatility <
1. Essential components like the gantry, column, and table are made from solid materials, with the main machine weighing up to 6300kg.
2. Applicable across various industries, making it an indispensable tool for plate processing.
3. Accommodates a wide range of drilling diameters, from 12mm to 50mm.
> Optimized for Diverse Production Scenarios <
1. Ideal for continuous production of multiple batches of single flat-type workpieces.
2. Supports small batch production of multi-species workpieces, capable of processing different plate shapes like rectangular, round flange, or polygonal. Simultaneously handles two or four different plate specifications.
3. Efficiently handles stacked production of thinner sheets, accommodating stacks up to 100mm thick.
4. Automated software processes determine start and end points for drilling, capable of producing through-holes, blind holes, step holes, and chamfers.
> Advanced Production Process Automation <
1. Integrated line board design ensures a high degree of automation, with automatic positioning based on the drilling program.
2. Automatically adjusts the optimal feeding volume according to varying hole diameters.
3. Facilitates the continuous and automatic processing of large hole diameters, achieving one-time processing and molding.
4. Equipped with an automatic chip removal function for seamless operation.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
