Greenlandplast Plastic Pelletizing Machine Plastic Film Recycling Pelletizing Machine

Product Description

Product Description

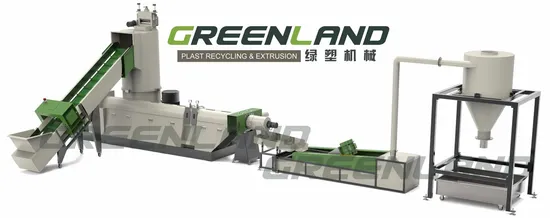

Greenlandplast Plastic Pelletizing machine Plastic Film Recycling Pelletizing Machine

The GLA series agglomerate/compacting pelletizing machine combines function of crushing,compacting,and pelletizing to one-stop ,
applied in the plastic films, plastic bags ,raffia bags, non-woven material , filaments,and foamed materials recycling and pelletizing. and
pelletizing process,which is a reliable and efficiency solution .
Final product pellets/ granules produced by this machine, can directly be used in the production line for film blowing, pipe extrusion and
plastics injection, etc
Beneifts
1)Combines curshing,compacting,pelletizing processes in one-stop,high automation degree,less labor-cost
2)Suitable for various materials ,such as ,films,raffia,foamed material,etc.,
3)Agglomerating machine is with automatical temperature controlling ,when reach set temperature ,automatical water spraying cooling ,to prevent material temperature too high ,which affect pelletizing quality!
4)Adopt water-ring cutting ,save production line area, easy to operate,pellets size uniform and beautiful
5)Vibration dewatering method, saving power consumption and low noise
Product Parameters
Technical date

Model	Screw Diameter (mm)	L/D	Motor power	Capacity
GLAP-80	80	33	37/55kw	120-200kgh
GLAP-100	100	33	55/90kw	200-350kgh
GLAP-120	120	33	90/132kw	350-600kgh
GLAP-140	140	33	110/160kw	600-750kgh
GLAP-160	160	33	132kw/220kw	750-900kgh
GLAP-180	180	33	185kw/250kw	900-1000kgh

Detailed Photos
Belt conveyor
plastic material be conveyed into the compactor chamber by belt conveyor,as to rolls films ,we may add roller hauling off system. Feeding speed are frequency controlling,speed is automatic adjusting based on how full compactor chamber is!
Agglomerator/Compactor
The rotatory blades of compactor crush incoming into scraps,at the same time ,frictional heating which caused by high speed rotation will heat and let scraps shrinking , the material and directs it into extruder screw barrel by rotation blades' centrifugal force .Compactor incorporates automatic water cooling and water spray technology,to cool down when it's overheated
Extruder system
38CrMoAl screw&barrel nitrogen treatment,the surface of the screw is sprayed with alloy wear layer,
Water ring cutting system
Water-ring die-head cutting type, cutting speed frequency controlling ,SKD material blade,pellets size uniform and beautiful Screen changing system
Automatic hydraulic screen changing system
Vibrator dewatering system
Vibration dewatering method, saving power consumption and low noise,high performance of pellets dewatering drying !
Blower&hopper storage
low noise,stainless steel !

Packaging & Shipping

---
