US$9,800.00-11,300.00
|
1 Piece
(MOQ)
|
Basic Info.
Tube Machine Type
Bending Machine
Layers of Roll Paper
2 - 8
Reelpipe Speed
Around 300PCS Per Min
Wall Thickness of Paper Tube
1 - 5mm
After-sales Service
18months
Straw Diameter
4mm 5mm 6mm (One Machine One Size)
Qty. of Trans. Rack
12-36 Groups
Functions
Counter, Automatic Stop
Voltage
According to Client Required
Machine Size
1.65*1.25*1.7m
Machine
Automatic Paper Drinking Straw Bending Machine
Name
Paper Straw Bending Machine
The Straw Length
150-250mm
Transport Package
Wood Base and Wood Case
Specification
1500*1100*1800mm
Production Capacity
30sets Per Month
Packaging & Delivery
Package Size
11.00cm * 11.00cm * 11.00cm
Package Gross Weight
11.000kg
Product Description

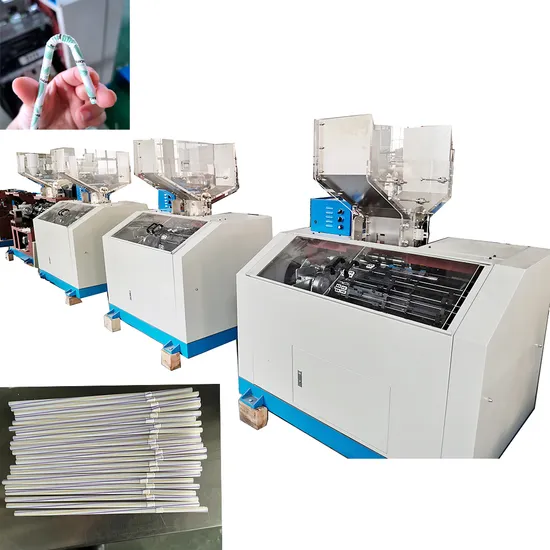

Flexible plastic paper Drinking Straw Bending PP Plastic bender Machine
Flexible plastic paper drinking Straw Bending bender Machine can bend the straight straws to be flexible with corrugate shape.
Can use for Paper P.P and PLA(polylactic acid) raw material.
Product Description
1. Paper straw bending machine Technical Data
| Model | SS021 |
| Capacity Max. | 250-300pcs/min |
| Straw Diameter | 6mm, ID(5.8mm) One machine one size |
| Straw Length | 150-250mm adjustable |
| Power consumption | 2 kw/h |
| Motor | 1.5 kw |
| Qty. of trans. rack | 12 groups |
| Functions | counter, automatic stop |
| Voltage | 3 phases 380V, 50hz |
Machine size
(L*W*H) | 1.5m*1.8m*1.7m |
| Machine weight | 850KG |
| Dimension in wooden box(L*W*H) | 1.65*1.25*1.7m |
| Weight in wooden box | 1000KG |
Biodegradable paper straw bending machine spare part list
| No. | Name | Specification | Quantity | Note |
1
| Flat belts | 2×16×890 | 1 pc | Total one set |
| 2×16×720 | 1 pc |
| 2 | Synchronous belts | 480H100 | 1 pc |
| 420H100 | 1 pc |
| 3 | Forming needles | - | 3pcs |
| 4 | Hex needles | - | 6pcs |
| 5 | Plastic clips | - | 50pcs |
| 6 | Guide plastic clips | - | 30pcs |
| 7 | Springs | - | 50pcs |
| 8 | Filler gauge | - | 1 pc |
Product Parameters
2.The high speed paper plastic straw bending machine
Madel | DD02-H4 | DD02-H |
Speed(pcs/min) | Max.>500 | Max.>600 |
Straw lnner Dia.(mm) | 3.8 | 4.3-6.0
One fixed dia. Can be selected from 4.3 to 8.0 |
Straw length(mm) | fixed | fixed |
| Qty. of trans. rack | 36 groups | 36 groups |
Straw thickness(mm) | 0.15-0.20 | 0.10-0.18 |
Top sectlon length(mm) | fixed | fixed |
Ring amount | 10 | 11(10-15) |
Doimension(mm) | (L×W×H)2200×1500×1700 |
Weight(kg) | 1200 |
| The straw inner diameter | 4.0mm |
Total power(Kw) | 1.5(380V/220V) |
