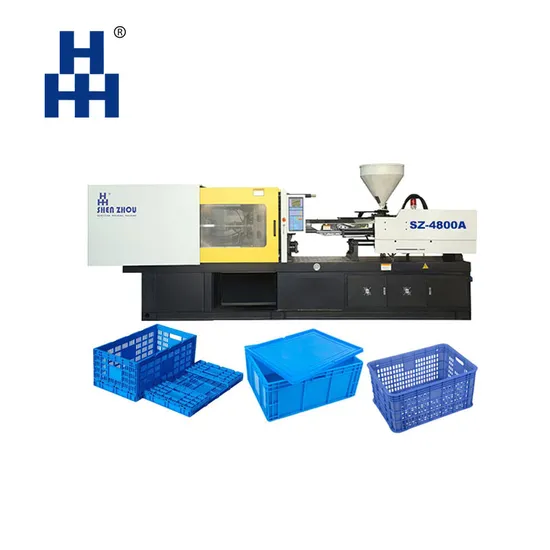

Full Automatic Plastic Injection Molding Fruit Vegetable Crate Making Machine for 20L Paint Bucket Pet Bottle Preform

Product Description

Screw diameter	mm	70	75	80
Screw L/D ratio	L/D	22.6	21	19.7
Shot weight	gram	1225	1406	1600
Injection capacity	cm3	1346	1545	1758
Injection pressure	Mpa	201	175	154
Theoretical injection rate	g/s	370	423	484
Plastic capacity	g/s	60.4	71.4	83.7
Injection stroke	mm	350
Screw torque	N.m	3490
Max screw rotate speed	r/min	150
Clamping force	Ton	480
Opening stroke	mm	770
Space between tie bars	mm	760×760
Mould height	mm	280-790
Max daylight	mm	1560
Ejector force	ton	113.4
Ejector stroke	mm	195
Ejector quantity		13
Oil pump motor	kw	45
Pump pressure	Mpa	16
Heating power	kw	28
Machine size	M	7.5*2.1*2.45
Machine weight	ton	20
Oil tank capacity	L	850
International designation		4800-2710

Q1: All of your products are made by yourself or purchasing the others?
We have independent technical team who focus on making machines, all the products
are made by our technical team.
Q2: What is the ability of your factory?
About injection molding machine, we could produce 50 sets machines per month.
about blow molding machine, we could produce 30sets machine per month
Q3: Do you have any technical supports about your products?
We have had long term collaboration with our partners worldwide, and we have a lot
of cooperation with a lot hef advanced manufacture company on the world.
Q4: Does the machine have an English manual and warranty card?
Each machine has a professional English operation manual and warranty card.
In addition, we can provide electronic version of the English manual.
Q5: Do you have an aftermarket warranty for your products?
Warranty: General one year for whole injection molding machines.
General one year for other types of whole machines.
All customers that have bought SHENZHOU injection molding machines would be provided with a lifetime repair service of the machines.
Q6: Who is responsible for the installation and debugging of the machine I purchased?
We the seller are fully responsible to send our engineers within two weeks from the date of the containers arrival to the buyers factory to commissioning the machine and training the staff of the buyer, the buyer should be responsible for a round trip economy ticket, a hotel and any other necessary accommodations for the seller's engineers, and engineer cost USD 80.00 per day.

---
