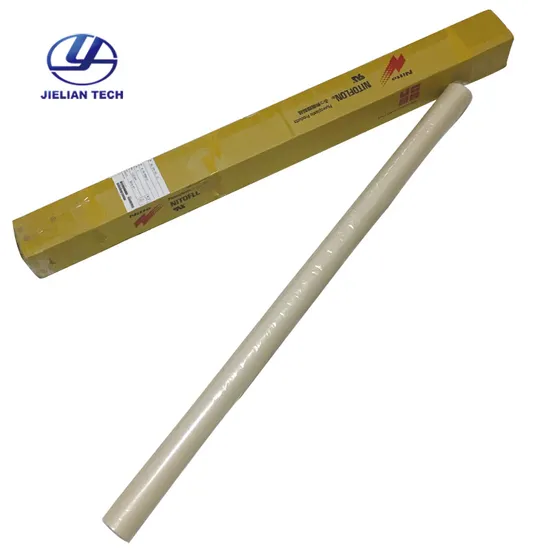

Nitto 970-2UL 0.1X1000mm*L10m, PTFE Sheet

Product Description

Fluoroplastic Saturated Glass ClothNITOFLON No.970-2UL/No.970-4UL/No.9700UL
Brand: NITTO
Real Estate: Japan
Model: 970-2UL
Specification: 0.1x1000mm*L10m Non-alkali glass cloth impregnated with PTFE and sintered.NITOFLON No.970-2UL/No.970-4UL/No.9700UL consist of a non-alkali glass cloth base impregnated with polytetrafluoroethylene (PTFE) and sintered. Exhibits excellent features such as chemical resistance, electrical properties, weather resistance and non-adhesiveness. Features*Three types of different smoothness: No.970-2UL general type, No.970-4UL heavy impregnated type, and No.9700UL surface-smooth type.
*Polytetrafluoroethylene composite with stable molecular structure that is not affected by virtually all industrial chemicals or solvents.
*Available for continuous use in a wide range of temperature; from -100°C to 260°C. Along with the superior dimensional stability of the cloth base material at both high and very low temperatures, it also has superior thermal properties compared to other thermoplastics.
*Both dielectric constant and dielectric loss tangent are lowest and remain stable in a wide range of frencies.
*Superior resistance to weather, moisture, and contamination.
*Lowest static friction coefficient among all solid materials. It demonstrates unique self-lubricating property of lowering static friction coefficient as the load increases. With its non-adhesiveness and mold-releasing property, no adhesive substance attaches to it and makes mold-releasing easy when it comes into contact with adhesive substance. Application*For molding: mold-releasing sheets.
*For printing: drying screen-printing machines.
*For apparels: adhesive interlining belts.
*For food processing: heat sealers, frozen food transportation, defrosting belt and baking belt.
*For packing: shrink film packaging and side band sealing.
*For office equipments: paper conveyor belt of copiers.

Property		Unit	Characteristic value
			No.970-2UL			No.970-4UL			No.9700 UL
Base material thickness		mm	0.05	0.10	0.13	0.05	0.10	0.13	0.05	0.10	0.13
Total thickness		mm	0.07	0.12	0.17	0.08	0.13	0.18	0.08	0.13	0.18
Tensile strength	Lengthwise	N/15mm	200	400	420	200	320	340	200	300	350
	Widthwise		160	370	370	160	330	340	160	300	320
Friction 8 coefficient		-	0.08	0.08	0.10	0.08	0.08	0.10	0.08	0.08	0.10
Breakdown voltage		kV	-	-	-	1.3	1.4	1.9	1.3	1.5	1.6
Volume resistivity		Ωcm	-	-	-	1016	1016	1016	1016	1016	1016

The above values are sample observed valuesnot the guaranteed performance

Specification

Model	color	Substrate			Short-term heat resistance (ºC)	Continuous use temperature(ºC)
		Thickness (mm)	Width(mm)	Length (m)
No.970-2UL	Beige	0.07	650	10	300ºC	-100~260ºC
No.970-2UL	Beige	0.07	1000	10	300ºC	-100~260ºC
No.970-2UL	Beige	0.03	1000	10	300ºC	-100~260ºC
No.970-2UL	Beige	0.1	1000	10	300ºC	-100~260ºC
No.970-2UL	Beige	0.1	300	10	300ºC	-100~260ºC
No.970-2UL	Beige	0.18	1000	10	300ºC	-100~260ºC

---
