CO2 Laser CNC Laser Marker for Non Metal Wood

Product Description

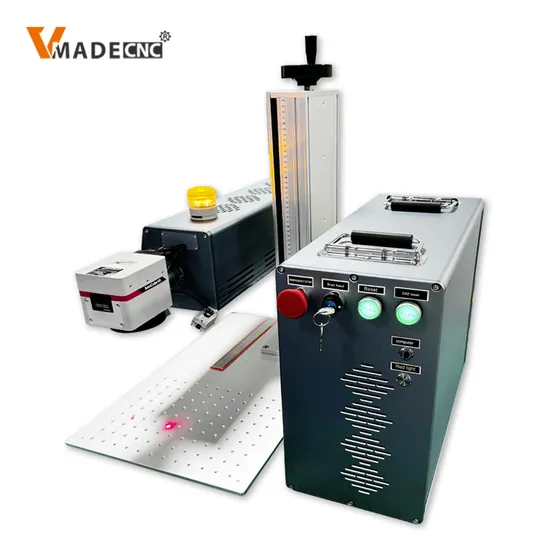

CO2 Laser CNC Laser Marker for Non Metal Wood
Product Description
CO2 series laser marking machine is a kind of gas laser machine. Its wavelength is 10.6um, belonging to the mid infrared band. CO2 laser machine has large power and high electro-optic conversion efficiency.It uses Co2 gas as its working substance. Filling the discharge tube with Co2 and other auxiliary gases produces a glow discharge in the discharge tube when a high voltage is applied to the electrodes, which causes the gas molecules to emit laser light. After amplifying the released laser energy, the laser beam is formed. Automatic marking is achieved by changing the laser beam path through a computer-controlled galvo.
Detailed Photos
1. Speed up to 15000mm/s
2. 100k Hours Lifespan
3. Exceptional Accuracy
4. Desktop & Handheld 2 in 1
5. Auto Lift & Manual Lift
6. Working Area 110*110mm & 150*150mm
7. Vivid Color Engraving
Product Parameters

Model	VLM
Laser Wavelength	1064nm
Laser repetition frequency	20kHz~100kHz
Laser power	30W 60W 100W
Marking scope	110*110mm 150*150mm 175*175mm 200*200mm 300*300mm
Laser sources	DAVI laser source
Laser Head	Sino-Glavo Scanning head
Field lens	Singapore Wavelength Lens
Control System	Origin JCZ- Ezcad
Red pointer	Double red pointer
Head move distance	500mm
The minimum focus facula diameter	20μm
Minimal character	0.01mm
Marking speed	≤7000mm/s
Repeated accuracy	0.0025mm
Cooling ways	Air Cooling
Process Material	All kinds of Non-metal Materials
Power supply	220V/50Hz/60Hz, 2kVA
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Package	Standard Crate for export
Pack size	780*470*770mm
Weight	60KG

Samples
Package
Company Profile
Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in hightech zone.It is a professional team which specialized in Optic, Electricity, Mechanics. Vmade keep delicate and attentive attitude on every step and always keep to learn the most advanced technology and create more humanized products to all our customers.
Contact Information
Please tell us what you need
1.What is your working size?
2.What material do you need to cut/engrave?
3. What is the thickness and size of each materials?
4.What is your business industry? signage or art craft works or what else ?
5.What is your full name,email,company name,website and contact number ?
If you have any questions, Please contact us

---
