Both Sides Feeding Hydraulic Plane Die Cutting Machine

Product Description

Die Cutting Machine

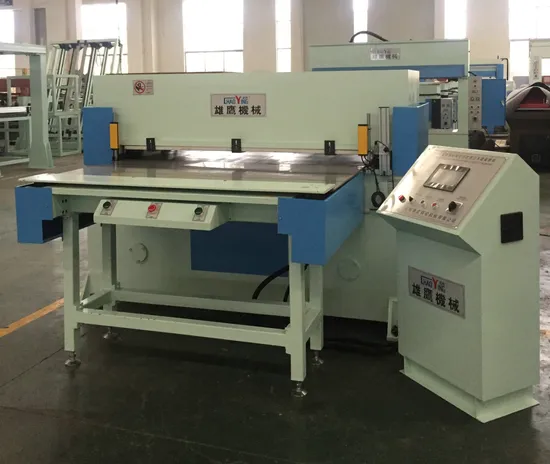

Both Sides Feeding Hydraulic Plane Die Cutting Machine
The machine is applicable to such cutting knife mold found objects: Leather, plastic, fabric, purses, toys, hats, foaming tablets, floor materials and soft cloth strips with a variety of needs.
Features are as follows:
1. Adopting Double oil cylinder, four-post oriented and Automatic balance link structure, which can guarantee the absolutely same cutting depth of each cutting position.
2. Automatic lubrication system, simple operation, low failure rate, strong impact force and extend the service life of the machine.
3. When pressing the cutting board and touching the cutter, it can cut automatically slowly to make that no size error between the layer and lowermost layer of the cutting material.
4. The special setting structure is equipped to assort with the cutter and cutting height to make the adjustment of stroke be simple and accurate.
5. Device of double sides auto-feeding worktable, control the feeding worktable advance and retreat, and be suitable for cutting two cutting dies of different height at the same time, feeding accurate and smooth.
6. Operation with two hands makes high safety.
7. Special sizes can be customized to the production, in order to meet the needs of different users.

Max cutting machine	50T
Cutting speed	0.10mm/s
Stroke adjustment	0-150mm
Distance between the upper board and the lower board	60-210mm
Upper board area	1600*800mm
Lower board area	1600*820mm
Electric supply voltage	3P/380V/50HZ
Motor power	4kw
Total weight	2000kgs
Dimension	2400× 1400× 1400mm

About us
Client visiting
Exhibition
Why choose us? 1.Our company is specialized in hydraulic cutting machine for more than 20 years,15 years exported experience.
2.As per client demand,we can customize machine.
3.We're manufacture,not trading company,price is competitve.
4.Strict quality control,each machine must test10-12 hours before leaving factory.
5.Good after-sales service system, support online video, email, within 8 hours online reply.

---
