Rigid Foam Insulation Fastwire Cutter, CNC Contour Cutting Machine with Abrasive Wire

Product Description

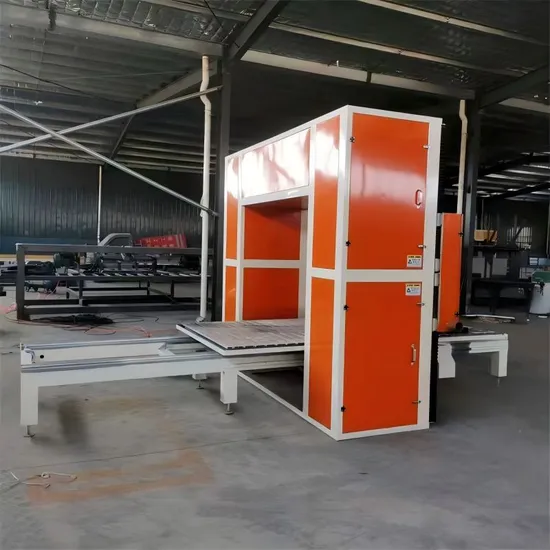

The foam contour cutter is computer controlled machine with working principle based on endless and high speed running of abrasive steel wire to cut the various foam materials.The steel wire revolves in the framework which moves up and down,the table moves horizontally.
So,the CNC contour cutting machine can cut the big foam block into sheets and 2D models.
The machine has other different names like foam contour,fast wire machine etc.
Cutting Wire
CNC Software
Machine Application
FAQ
Q: what foam materials can it cut ?
A: EPS cement,Foamed cement,paper conruggation,PU,PUR,Sponge,moneral wool,rock wool etc.
Q: The cutting wire has any options ?
A: Yes.There is smooth type,Double peak type and single peak type,they are for different materials.You can ask for us if you have any questions.
Q: How many axis are on the cutter?
A: two axis. X and Y.
Q: Will the machine fit into container?
A: Yes.There will be two boxes,they will be overlapped inside container.
Machine Parameter

Model No.	CNCPSQ2500
Working Size	L2500mm*W1224mm*H900mm	Cutting Speed	0~6 m/min
Machine Size	4000mm*2200mm*2300mm	Speed Control	Frequency conversion control
Max Lifting Height	3300mm	Computer	Yes
Machine Weight	1200kg	Software	comes with it at computer/CAD
Power Supply	380V 3 phases 50Hz at Default	Control System	Mach3
Total Power	3kw	Stabling Unit	Pressing Rollers
X /Y axis Motion	Gear and Rack	De dust	Bagging De dust unit
Cutting Wire	High Carbon Steel Abrasive Wire	Wire Tensioner	Pneumatic by air compressor with 600w Power
Wire Dia.	1.3 1.5 1.8 2.0 2.2 mm	Motor Type	4 sets Stepper Motor
Wire Type	Smooth / Single Peak / Double Peaks	Guiding Rollers	Nylon rollers with multiple grooves
Application	EPS Cement,foam cement,glass wool,mineral wool,PU,Sponge,EPS,NF EPS,XPS,Foam Glass,EVA,Corrugation Paper,PE,gypsum,composite materials etc.
Remark	Some high density materials like foam ceramics need diamond wire to cut,machine will be steel guiding rollers and be water proof,protection cover for whole machine etc.
