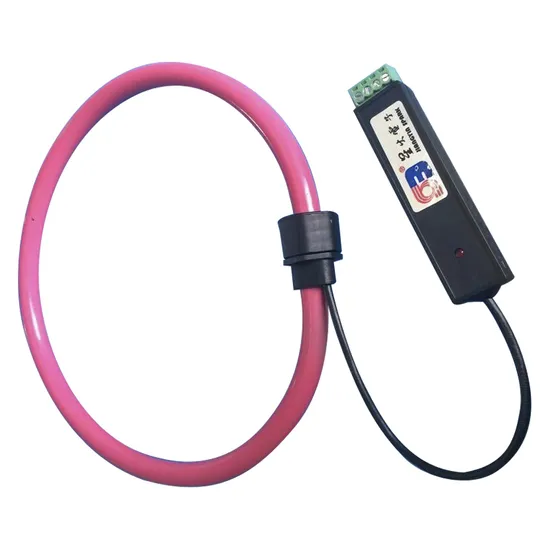

333mv Flexible Rope Current Transformer Rogowski Coil Current Probe

Product Description

CE ROHS 0.333V Flexible Rogowski Coil Current probe Jiangyin Spark FCT is flexible, like rope ,it is designed to use where solid or split core current transformers cannot fit Advantage including high accuracy, wide measurement and frequency range and very light weight.The probes comprise a flexible air-cored sensor which can be opened, allowing them to be installed around a primary conductor without interrupting the circuit. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas and with large conductors.
Specifications Of 0.333V Flexible Rogowski Coils Current Transformers

Rated current (rms)	10A-100KA
Output	mV (without integrator)
	0.333V,0-5V AC(with integrator)
Power supply	9V,15V,24V DC
Coil length	20cm-200cm
Tube	UL material
Wire lead	Shielded cable
Isolation voltage	3000V
Operating temperature	-25ºC-+70ºC
Frequency	50Hz-60Hz
Accuracy	±1%

Drawing of 0.333V Flexible Rogowski Coils Current Transformers
Test of Flexible Rogowski Coils
Shipmet of split core current transformer
