Horizontal Waste Paper Cardboard Newspaper Baling Baler/Automatic Waste Paper Baler/Waste Cardboard Packing Machine/Compressor

Product Description

Horizontal Waste Paper Carboard Newspaper Baling Baler/Automatic Waste Paper Baler/Waste Carboard Packing Machine/Compressor

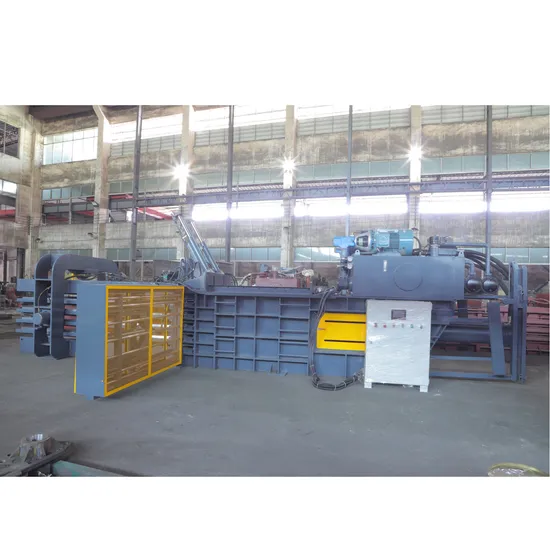

Qiangye Machinery is the professional waste paper (cardboard, corrugated board and cultural paper) baling press manufacturer. The automatic baler was used hydraulic power to compressed the loosen papers into paper bales, that made operators easily to be transported. We designed the baler for waste paper recycling collectors, or the corrugated carton and cultural paper makers. The Horizontal Paper Baler (ZYB-150) have 150 tons pressing force and 12 tons capacity per hour. This baler is very popular for recycling plant and paper makers.
Product: Automatic hydraulic Waste Paper Baler
Model Type: ZYB-150T
Configuration: Hooking Lever Type Wire-Tie System
M/C Size: 8680(L) x 4050(W) x4500(H)mm
Standard Bale Size: 1100(W) x 1100(H) x 1300(L)mm-adjustable
1. Input & output
Raw material: waste paper, carton
Completed product: waste paper bale, carton bale
Output capacity: 12-14bale/hr.

2. Energy consumption:
Electricity consumption:
Main power:2x37kw
Conveyor power:7.5kw
Cooling tower system:1.5kw
Qty. of labors: 1-2 persons

3. Basic Infrastructure
3.1 Electricity supply:380V/50Hz,200V/50HZ,220V/60HZ,440V/60HZ(option)
3.2 Workshop size: At least 16m (length)×15m(width)×4.5m(height) laid in a straight line
3.3 one part of the conveyor(4meter long) need to put in the group(about 1meter deep)
3.4 Necessary lifting plants for loading and unloading machines during install nation and testing
Configuration for the automatic baler:

Part	Component	Qty.	Function
A	baler	1	Baling the material
B	conveyor	1	Delivery the material
C	Cooling tower	1	Cooling the temperature of the oil

bale volume: L*W*H(mm)1300*1100*1100mm
bale weight:about 800-1000kg
max work pressure:150Ton
motor power:37*2kw
conveyor power:7.5kw
capacity:12-14 bale/h
overall dimension: L*W*H(mm)8680*4050*4500mm
space for installation of conveyor:L*W*H(mm)12400*13800*4600mm
total weight:32000kg
wire number: 5
tie wire system: automatic
electric panel: Japanese appliance
conveyors: compose by iron plate
size:11.8meter(Length)x1.8meter(width)
oil tank capacity: 1530kg(68# hydraulic oil)
cooling system: water cooling
Guarantee period and after-sales services:One year .
During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
Product Parameters

Model	Bale Volume L*W*H(mm)	Max Work Pressure(KN)	Motor Power (KW)	Conveyor Power(KW)	Capacity (Pack/h)	Overall Dimension L*W*H(mm)	Space for installation of Conveyor L*W*H(mm)	Total Weight (KG)
ZYB-150T	1300* 1000*1100	1500kn	(37/45)*2kw	7.5-11kw	12-16	8680*4050*4500	12400*13800*4600	32000kg
	1300* 1100*914	1500kn	(37/45)*2kw	7.5-11kw	12-16	8680*4150*4314	12400*13800*4500	31500kg
	1300* 1100*1100	1500kn	(37/45)*2kw	7.5-11kw	12-16	8680*4150*4500	12400*13800*4600	33000kg
ZYB-120T	1200* 914*914	1200kn	37/45kw	7.5kw	8-12	7350*3680*4200	11400*12800*4200	24000kg
ZYB-100T	1000* 660*914	1000kn	30kw	5.5-7.5kw	8-12	6860*3230*3900	10700*12000*3900	20000kg
