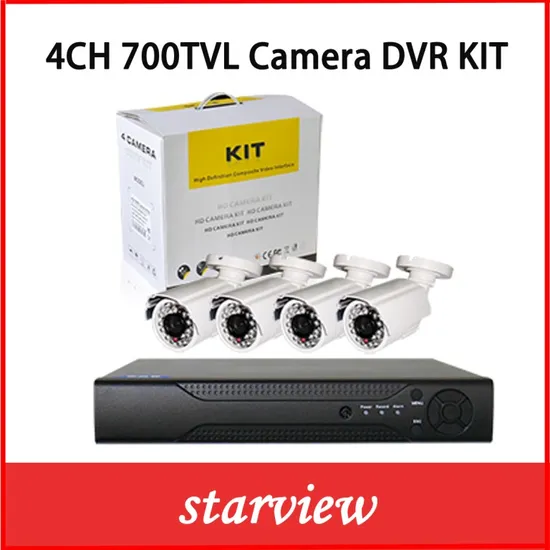

Surveillance 700tvl Bullet CCTV Security Camera DVR Kit Recorder

Product Description

Key Features
DVR:
H.264 main profile compression
4ch full D1 real-time coding recording
Support iPhone, Windows mobile, Blackberry, Symbian, Android.
Support TV, VGA, HDMI output synchronously
Support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP,EMAIL
Support 3322, Dyndns, Oray, Myq-see,etc Domain name service.
Support 1 SATA interface up to maximum 3TB HDD. Support 2 USB2.0.
Support 15 kinds of languages such as English, Finnish, French, German, Greek, Italian, Japanese,
Polish, Portuguese, Russian, Spanish, Thai, S-Chinese,T-Chinese and Turkish
Easy operation GUI.
Camera:
1/3 CMOS DSP Sensor
Resolution 700TVL (600TVL,800TVL,1000TVL Optioanl)
Minimum illumination:0.1Lux/F1.2(0Lux IR ON)
ICR cut,day and night control
24PCS,Ø5 LEDS,IR Distance 20M
3.6/4/6mm Fixed lens
Water-proof IP66
Packing
1.IR Camera*4
2.4CH Full D1 DVR*1
3.Power DC12V/3A *1
4.20M Power&Video Cable Line*4
5.Mouse*1
6.CD dish*1
7.Quick Installation Guide*1
8.Screws

Model	SV60-DK04W270
Standalone DVR Specifications
System
Operating system	Embedded LINUX
System resources	Pentaplex function:live,recording,playback,backup & remote access
Interface
Operating Interface	16-bit True Color human control system
Screen display	1/4
Video
Video Standard	PAL(625 line,50 f/s) ; NTSC9525 line,60 f/s)
Monitoring quality	PAL:D1(704×576) ;NTSC:D1(704×480)
Playback quality	D1/HD1/CIF/QCIF
Total frame rate	D1:PAL 100/120fps
Video Input	4ch
Video Output	1BNC, 1 VGA
Audio
Compression standard	G711A
Audio Input	4ch
Audio Output	1ch
Voice Intercom	Support
Video recording and playback
Video mode	Manual>Alarm>Video Detection>Continuous
Local playback	4ch
Video Query	Time/Date, Alarm, Motion Detection & exact search ( accurate to second)
Storage and backup
Take up hard disk space	Space Occupation,CIF:5G/day@channel,D1:20G/day@channel
Video Save	Hard disk,U Card,HDD,Network (To prevail in kind)
Backup	U Card\HDD\Network (To prevail in kind)
Interface
Audio in	4 in
Audio in	1 out
Alarm Input	No
Alarm output	No
Network Interface	RJ45 10M/100M
PTZ Interface	NO
USB Interface	1 USB port
HDD Interface	1 SATA port (Maximum 2T SATA HDD)
Network
Network Interface	RJ45 10M/100M
Network Protocol	Supports TCP/IP, DHCP,DDNS
Internet Viewing	Internet Explorer 6 or Higher
Mobile Phone Viewing	Symbian, Windows Mobile, iPhone, Blackberry and Android Phone
General
Power supply	12V/2A
Power	<15W (without hard disk)
Operating Temperature	0°C-+55°C
Humidity	10%-90%
Dimensions	34*9.5*27cm
Weight	2KG(without hard disk)
Camera Specifications
Video
Image Sensor	1/3'' Sony 960H CCD
pixels	PAL : 712(H)x582(V) NTSC : 712(H)x492(V)
TV System	NTSC / PAL
Minimum Illumination	0Lux,IR ON 3Lux
Horizontal Resolution	700 TV Lines
Electronics Shutter	PAL:1/50~1/100,000s,NTSC:1/60~1/100,000s
S/N Ratio	More than 48DB(AGC OFF)
BLC	Auto
Sync System	Internal Synchronization
Video Output	1.0VP-P,75Ω
Lens
Len	3.6mm
View Angle	75 degree
Iris Control	Auto
Night Vision
Infrared Distance	20M
Infrared LED	24pcsφ5 LEDs
General
Power Consumption	90MA (IR Off) ;200MA (IR On)
Power Supply	DC12V
Operating Temperature	-10°C~ 50°C (14°F~122°F)
Storage Temperature	-20°C~ 70°C (-4°F~158°F)
Weatherproof Housing	YES
Bracket	YES

---
