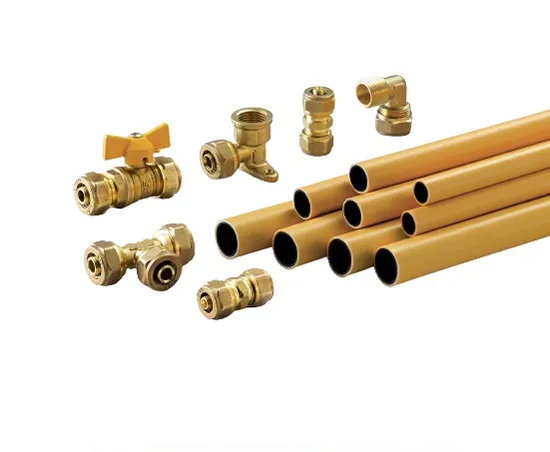

EU Standard PE Al PE Gas Pipe PE-Al-PE Pipes Fittings Pex-Al-PE Pipes

Product Description

Product DescriptionPe(x)-Al-Pe(x) tubing/ Multilayer pipe
ASB Pex Al Pex tubing is a five-layer composite pipe that combines the advantages of a metal and plastic pipe and eliminates the disadvantages of both materials at the same time. The aluminium core is absolutely diffusion tight; it reliably prevents oxygen/gases from permeating into the pipe. It compensates and reduces snap-back forces and heat expansion with changes in temperature.
ASB Pex Al Pex tubing includes two types of design: Overlapped welded pipe is co-extruded with one step with perfect adhesive between the inner layer and aluminium, high and stable pressure resistance, of which welding style is ultrasonic; Butt-welded pipe is moulding with several steps that are argon-arc welding style.Product ParametersASB can provide the below size of Pex Al Pex tubing:

Specification	Wall Thick	Outer Dia.	Inner Dia.	Alu.Thick	Coil length	Color
(mm)	(mm)	(mm)	(mm)	(mm)	(m/coil)	According to customers requirement
0912	1.5	12	09	0.16-0.20	100/200/300
1216	2.0	16	12	0.18-0.25	50/100/200/300/400/500
1418	2.0	18	14	0.18-0.25	50/100/200/300
1620	2.0	20	16	0.20-0.25	50/100/200
2025	2.5	25	20	0.25-0.35	50/100
2026	3.0	26	20	0.25-0.35	50/100
2632	3.0	32	26	0.30-0.40	25/50/100
ASB accept the OEM production

Technical IndexASB pex al pex tubing with following technical index

Specification	Technical data
Product name	Pex al pex tubing
Max. Working temperature	95ºC
Working pressure	PN 10 Bar
Pex material	Constab Pex material
Standards follow to	ISO9001, ISO21003, ASTMF 1281, AS4176.8, GB/T18997, WRAS
Blasting Strength	12mmpipe≥70bar 16mm pipe≥60bar 20mm pipe≥50bar 25/26/32mm pipe≥40bar
Pipe Rings Strength	12mmpipe≥2100N 16mm pipe≥2300N 20mm/25mm/26mm pipe≥2500N 32mm pipe≥2650N
Sustained Pressure	At 82ºC temperature & 27.2Bar testing pressure for 10 hours, no break
Thermal conductivity	0.45 W/(mk)
Coeffcient of thermal expansion	0.025 mm/(mk)
Bending radius	≥5D(D=pipe outer Dia.)

CertificationsISO9001:2008, ISO14001: ISO21003, SKZ, CE, GOST-R, WATERMARK
Company ProfileAbout us:Solerad ASB company is a international group company, found in 1989, special in produce the Water/Gas supply system products and Heating system products.
We have over 6000 square meter of factory space, and right now we have:
1. 20 pipes production line including Overlap pipe, Butt-welding pipe, pex pipe, 5 layer Evoh-pert pipe, the daily capacity over 250000mtrs
2. 20 set hot forgeing machines for brass products
3. 300 sets Auto-matic CNC machines for brass fittings and ball valve
FAQ1. Are you a manufacturer or a trading company?We are the manufacturer since 1989, we have over 30 years' experience in this industry.2. What size of pipes can you make?12mm, 16mm, 18mm, 20mm, 25mm, 26mm, 32mm, 40mm, 50mm, 63mm3. What colour of pipes can you do?3.1 Usually for water pipes, inside transparent-outside white, inside transparent-outside red, inside orange-outside orange3.2 Usually for gas pipes, inside black-outside yellow, inside transparent-outside yellow4. What packing coils are you offering?For small size pipes, 100m, 200m, 300m, 500m/coilFor big size pipes, 25m, 50m, 100m/coilAlso, we can do straight pipes, 4m/pc, 5m/pc5. Which port is near your factory?NINGBO PORT or SHANGHAI PORT6. What's your Price Term?Usually, we offer based FOB NINGBO, CHINA. We can also quote CIF per your request.7. What's your Payment Term?The popular one is a 30% deposit and the balance before shipping.8. What's your Delivery Time?It depends on your Items and Quantity while for example, we can ship 1-2 40HQ container of basic goods within one week.9. If you can accept OEM processing?Yes, we can do OEM and both ODM

---
