Heavy duty castor gray rubber TPR caster top plate casters 4/5/6/8 inch swivel industrial caster wheels

Product Details

Product Description

Product Description

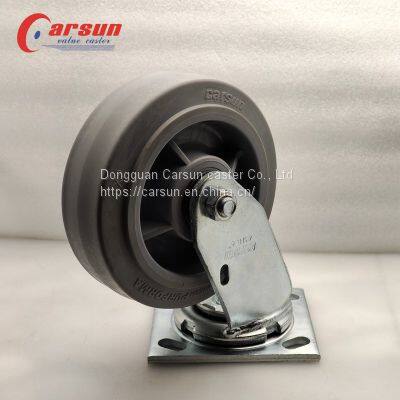

Heavy duty castor gray rubber TPR caster top plate casters 4/5/6/8 inch swivel industrial caster wheels

Model Number (swivel)	Model Number(rigid)	wheel diameter(mm)	tread width(mm)	Load capacity(KG)	wheel material	bearing	load height(mm)	swivel radius(mm)
4-4T01S-301C	4-4T01R-301C	100	51	160	TPR	Delring	143	90
4-4T01S-301E	4-4T01R-301E	100	51	160	TPR	Roller	143	90
4-4T01S-301G	4-4T01R-301G	100	51	160	TPR	Double ball	143	90
4-5T01S-301C	4-5T01R-301C	125	51	180	TPR	Delrin	165	108
4-5T01S-301E	4-5T01R-301E	125	51	180	TPR	Roller	165	108
4-5T01S-301G	4-5T01R-301G	125	51	180	TPR	Double ball	165	108
4-6T01S-301C	4-6T01R-301C	150	51	270	TPR	Delrin	191	127
4-6T01S-301E	4-6T01R-301E	150	51	270	TPR	Roller	191	127
4-6T01S-301G	4-6T01R-301G	150	51	270	TPR	Double ball	191	127
4-8T01S-301C	4-8T01R-301C	200	51	304	TPR	Delrin	241	165
4-8T01S-301E	4-8T01R-301E	200	51	304	TPR	Roller	241	165
4-8T01S-301G	4-8T01R-301G	200	51	304	TPR	Double ball	241	165

If the brake is required, please add the brake code after the bracket code. For example, the code of TPR caster wheel with 4-series 4-inch movable bottom plate and metal side brake is "4-4T01SB1-301C"
Brake:
B1: metal side brake;
B3: Nylon full brake;
B4: metal full brake.
Bearing:
C---Delrin bearing E---Roller bearing G---Double ball bearing
High Quality
1. Made of new raw material, environmental protect, retractabel, non-discolouring, anti aging.2. Wear resistant and durable, non marking.
3. Fork thickness and plate thickness have been reinforced.
4. Bearing steel ball bearings (Hardness over HRC 55).
Our Services
If you are interested in our items, find our contact way below photo now to get the promotion price and free caster samples.
Company Information
Dongguan Carsun caster Co., Ltd. is a modern production-oriented enterprise focusing on caster R & D, design, production and sales. The company is located in Dongguan, Guangdong Province, the "manufacturing capital of the world" with convenient transportation. In order to build a caster brand with high quality and high cost performance, the company has invited a number of teams from the caster industry to join. The main technical and production management personnel are from well-known caster enterprises and have many years of R & D and production experience in the caster industry.
The company adopts advanced production process and technology of casters, and the quality of casters has reached the advanced level of the industry. In particular, the company has high-tech technical advantages in the industry in terms of performa rubber (TPR) caster, thermo caster(high-temperature resistant caster), conductive/antistatic caster and antibacterial caster. In addition to selling well at home, the products produced by the company have also been exported to the United States, Australia, Singapore, Southeast Asia, Israel, Italy, Vietnam and other places, and have been highly praised by customers at home and abroad.
We not only produce various standard casters commonly used in the industry, but also provide customized services according to customers' requirements. We can produce castors that meet the EU ROHS environmental protec tion standards, and also produce medical castors that meet the international SGS medical testing standards.
Since its inception, the company has established a perfect quality management system and successfully passed the ISO9001:2015 quality management system demonstration. In order to effectively ensure the product quality, the company has prepared various caster testing facilities to make it clear that the products must be tested in strict accordance with the quality management standards before leaving the factory, such as product life test, salt spray test, impact resistance test and so on.
Quality Assurance
We have advanced testing equipment in the industry. We strictly and comprehensively test the incoming and outgoing of each batch of products.
We are equipped with various caster testing equipment, which makes it clear that the products must be tested in strict accordance with the quality management standards before leaving the factory, such as product service life test, impact resistance test, salt spray test and so on.
Experiment on the service life of castor loaded walking
Impact resistance test
Salt spray experiment
High temperature resistance test
Packing&Shipping
FAQ
Q1.Are you a factory or a trader? A: we are a powerful factory established in Dongguan, Guangdong, China, with a factory area of about 8000 square meters. It has 8 injection molding machines, 10 stamping machines, 2 oil presses, 1 double station welding machine, 2 single station welding machines, 2 automatic rivet machines, 6 caster assembly lines and other automatic equipment.
Q2. Can I get free caster wheel samples from Stardrawing ?
A: We would be honor to offer you free caster samples, and we believe that you would be willing to pay for the freight fee forsuchgood products. Please provide your DHL/FedEx or other freight collect number and advise which express type should be chosen,international express type(2~3days) or economic type (4~5days).
Q3. What is your payment terms of caster ?
A: It is undisputable and crystal clear that 30% advanced payment, 70% before shipment, hope we have reached agreement for thisregular payment manner.
Q4. What about your lead time ?
A: Usually, caster sample needs 5-7 days, mass production time needs 30 days. It is up to the quantity and stocking.
Q5. Is it OK to print my logo on casters ?
A: Sure.
Option 1 - Build the molds and fixtures upon your sample or technical drawings
Option 2 - Add your logo on fork or wheel
Option 3 - Pack the casters in your branded carton
Q6. How can I trust the quality of your casters ?
A: We tell you that we have variety of international quality certificates, we have a very strict quality control system, we do
aseries of caster tests before shipping. Right, you still have no idea about our quality. Therefore, no hesitate! Just place
atrial order from Stardrawing. You will not only trust the quality of casters, but also trust the character of Stardrawing people since then.
Q7. What express can we choose?
A: FedEx,UPS,DHL,TNT etc.
Q8. What is you MOQ?
A: Small order can be accepted if we have stock. MOQ for different styles is different.
Q9. If you product is environmental protection and anti-rust?
A: Of course,all our products are ECO-friendly.

---
