Multi Blade Cutting Log Saw Mill Timber Sawmill Board Edger Wood Working Sawing Machine

Product Description

Product Description

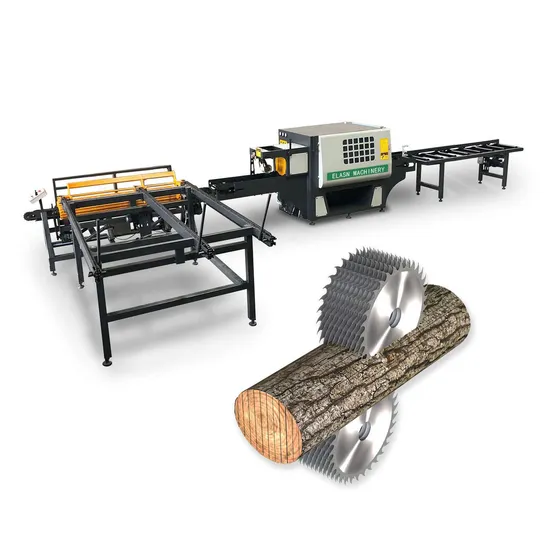

The multi rip saw is widely used for processing raw wood log.Our saw uses upper and lower saw blades for longitudinally cutting round log,which can be cut into pieces of small planks or one middle or two middles big planks and other small planks through the multi rip saw.
The automatic multi rip saw is mainly composed of mechanical automatic feeding parts, front and rear stage pushing cylinder parts, height detecting parts, automatic pressing parts, traction parts, circular saw adjusting parts and frame, PLC control system, liquid crystal touch screen, etc.

Product Parameters

Model	ELA200	ELA250	ELA300	ELA350	ELA400	ELA500
Cutting Length(mm)	450-4000	600-4000	60-4000	800-4000	800-4000	800-4000
Cutting Diameter(mm)	60-200	80-250	150-300	150-350	200-400	300-500
Saw Blade Size(mm)	305*2.6	366*3.0	438*3.8	480*4.2	550*4.8	650*4.8
Saw Blade Speed(r/min)	3800	3800	3800	3980	3980	3980
Total Power(kw)	47kw	76kw	76.5kw	76.5kw	93kw	114.1kw
Spindle Power(kw)	22*2	37*2	37*2	37*2	45*2	55*2
Frequency Control(m/min)	Adjust
Capacity(m³/h)	2-3	4-5	5-6	6-7	7-8	10-12
Weight(kg)	1700	2200	3000	3300	3500	3800
Dimension(mm)	3340*950*1400	3600*950*1500	3800*1200*1650	3800*1300*1750	3950*1360*1800	4000*1400*1800

Product Features
Features of Wood Log Multi Blade Rip Saw Machine1. The upper and lower drive shafts synchronously rotate, and the feeding is powerful. It can move forward and backward freely, no wood stuck. 2. The equipment adopts imported double bearing design. The key components, such as spindle and bushing, are processed by super-fine external grinding machine under the advanced technology of heat treatment process, electroplating process and numerical control process. The surface strength and precision is higher with smaller vibrating, that ensure longer practical life.
3. The humanized design of the key parts is truly waterproof, dustproof and easy to maintain, without damaging each saw blade.
4. The cooling system has been redesigned with an advanced in-shaft water spray method for more complete cooling.
5. Upper pressing roll automatically increase tensile force to ensure stable feeding.
6. The main chassis is integrated, more stable and not deformed.
Detailed Photos

Whole Production Line
Company Profile
Henan Elasn Machinery Equipment Co., Ltd is located in Zhengzhou, central area of China, a traditional industrial city with rich culture and history. Away from Xinzheng international airport only half an hour, also have train to every main city of China.
"Business integrity, Quality first" is our principle. Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers.
"To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China."
All members of ELASN welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!
Packaging & Shipping
After Sales Service-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.Technical Support- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
FAQ

Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/ phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.

---
