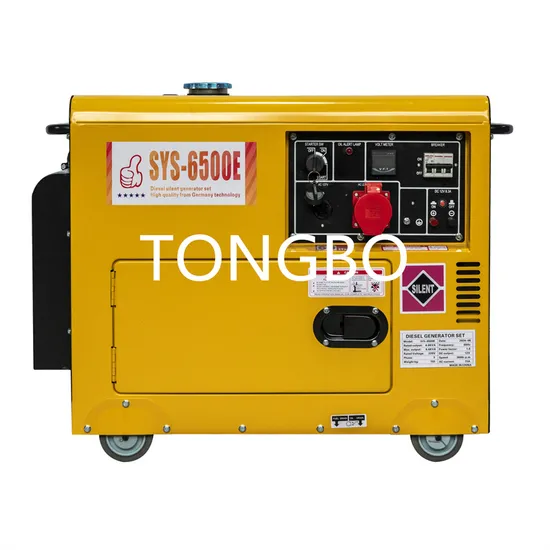

Europe Emergency Electrictiy Diesel Generation 5kw 7kVA 7.5kVA 8kw 10kw Air Cooled Portable Genset

Product Description

Product Description
Europe Emergency Electrictiy Diesel Generation 5kw 7kVA 7.5kVA 8kw 10kw Air Cooled Portable Genset
Our Advantages
1. Strong technology and high-quality personnel, continuous innovation and perfect management.2. Diesel generator set with CE certificates3. All spare parts pass Strict and Accurate raw material detection(IQC); All finished products detection Match ISO standard4. Complete production procedures, strict test center, good package5. Warranty: Running 500 hours or one year. Can support free spare parts for repairing during warranty time also low than market price spare parts out of warranty time!6. Any questions. Pls do not hesitate to contact our salesperson
Product Parameters

Model	Open type/SILENT diesel generator
	2KW	3KW	5KW	5.5KW	6KW	7KW	8KW	10KW	11KW	15KW
	HTD2500L(E)	3500L(E)	6500L(E)	7500L(E)	HTD10000L(E)	12000L(E)	15000L(E)	12000E	15000E	18000E
Frequency(Hz)	50 /60	50/60	50/60	50/60	50/60	50/60	50	50/60	50/60	50/60
Rated speed(rpm)	3000/3600						3000	3000/3600
Voltage(AC)(V)	120, 220, 230, 120/240, 220/380							220, 220/380
Voltage(DC)(V)	12	12	12	12	12	12	12	12	12	12
Rated Current(A)	7.4	12.2	19.6	21.7	28.2	30.4	36.9	45	50	68
Engine speed(rpm)	3000 /3600	3000 /3600	3000 /3600	3000 /3600	3000 /3600	3000/3600	3000	3000/3600	3000/3600	3000/3600
Phase NO.	Single phase, Three phase
Power facotr(cosφ)	1/0.8
Starting system	Recoil manual start/optional electric start						electric start
Rate power(Kw)	1.8/2.0	2.8/3.0	4.5/5.0	5.0/5.5	6.0/6.5	6.5/7.0	8.5	10.0/11.0	11.0/12.0	15.0/16.0
Max power	2.0/2.3	3.0/3.2	5.0/5.5	5.5/6.0	6.6/7.2	7.1/7.7	9.3	10.5/11.5	11.5/12.5	15.5/6.5
Engine model	173	178F	186FA	188F	192F	195F	1100F	2V88F	2V92F	KT2V95F
Type	Single cylinder,vertical,direct injection,4-stroke,air cooled							V-Two cylinder, 4-stroke, direct injection, air-cooled
Excitation mode	Self-excitation&constant voltage(AVR)
Bore × Stroke(mm)	70*55	78*62	86*70/86*72	88*75	92*75	95*75	100*85	88*75	92*75	95*88
Displacement(cc)	211	296	406/418	456	498	531	667	912	997	1247
Compression Ratio	20:01	20:01	19:01	19:01	19:01	19:01	20:01	19.5:1	19.5:1	19.5:1
Fuel Tank Capacity(L)	15	15	15	15	15	15	15	15	15	15
Continuous running time	14	8.5	5.5	5.5	5.5	5.5	5	5	5	5
Packing dimensions(mm)	640*480*530	655*480*530	720*492*655	720*492*655	720*492*655	720*492*655	780*585*710	870*630*880	870*630*880	870*630*880
Gross Weight(KG)	53	70	100	100	100	100	130	195	200	210
Lube-oil brand	CD grade or SAE10W-30, 15W-40
Continuous running time	14	8.5	5.5	5.5	5.5	5.5	5	5	5	5

Company Profile FUAN TONGBO ELECTRICAL MACHINERY CO.LTD. Was founded on July 1st,2009 in FU'AN city , "the city of electric machinery", as an export oriented manufacturer of Electric Motors ,AC Generators and Generator Sets. We specialize in R&D,production, sales and customer service of said items and pride ourselves as professionals in related area.Our goal is to build "TONGBO" into a world-renowned brand. In order to achieve that, we promise to run an honest business by putting quality and customer satisfaction as our top priorities. With "Honesty, Team-spirit, Responsibility, Hard-work and Gratitude "as essence of our corporate culture,We shall continue to provide our valued customers with high quality products and professionalism to the best of our abilities.
Our Models Our own brand "TONG BO" consists of different models of motors listed as below: 1.Three phase asynchronous motor - Y series ,Y2 series, AEEF series etc. 2.Single phase asynchronous motor --YC series,YL series, JY series 3.Aluminum Casing three phase asynchronous motor --MS series 4.Aluminum Casing single phase asynchronous motor--MC series, MY series,ML series "TONGBO" Brand AC generator models are listed as below: 1.Single phase ST series with brush 2.Three phase STC series with brush 3. TBS brushless series
4.Petrol generator power from 0.55kw to 20kw
5.Gasoline and Diesel Genset power from 0.55kw to 2000kw.We also have generator sets like CUMMINGS series generator set, YUCHAI series generator set, WEICHAI series generator sets etc.
More About Us Throughout design,manufacturing process,material selection,production,equipment testing,quality control, we make every endeavor to ensure our production is in strict accordance with ISO9001 Quality Management System in order to yield high quality products.Our products travel widely from South-east Asia to as far as Middle-east, Africa also US and European countries. TONGBO has won a high admiration and is widely trusted at home and abroad.Our goal is to build "TONGBO" into a world-renowned brand. In order to achieve that, we promise to run an honest business by putting quality and customer satisfaction as our top priorities. With "Honesty, Team-spirit, Responsibility, Hard-work and Gratitude "as essence of our corporate culture,We shall continue to provide our valued customers with high quality products and professionalism to the best of our abilities.
FAQ More Features:1` Powerful and durable OHV 4-stroke engine;2` Durable metal fuel tank provides 10 hours @50% load;3` Emergency low oil alert, AVR and over load protection included;4` Easy start, compact, fuel-efficient provide smooth and clean power;5` AC/DC output and cables for 12V batteries charging.
Quality Assured For your products:
TONGBO all use qualified and branded spart parts, 100% machine spare parts must be tested before assembling, 100% generator, water pump, engine, high pressure washer must be tested before packing, 3% of your good we do dropping test to, we have 1 over 20years engineer, 2 over 10years engineers, 2over 8years engineers R&D research team.
Why Choose TONGBO.
1.Supply you top quality products with Competitive Price under the same quality level, different products according to your different market demands. 2. Strictly Control the whole production process and guarantee punctual delivery, Test each of our products one by one before packing to ensure the quality.
3. Supply you a good pre-sale, in-sale and after-sale Service. We're not just working partners, but also Friends and Family.
4. When you come to our Factory, we will try our best to supply you all services to make you feel like at home.

---
