US$18,000.00-45,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
After-sales Service
2 Years Free Parts
Key Selling Points
High Productivity
Transport Package
Wooden Box
Origin
Zhangjiagang China
Production Capacity
90-180 Bottle/Hour(Depend on The Bottle)
Product Description
Product Description

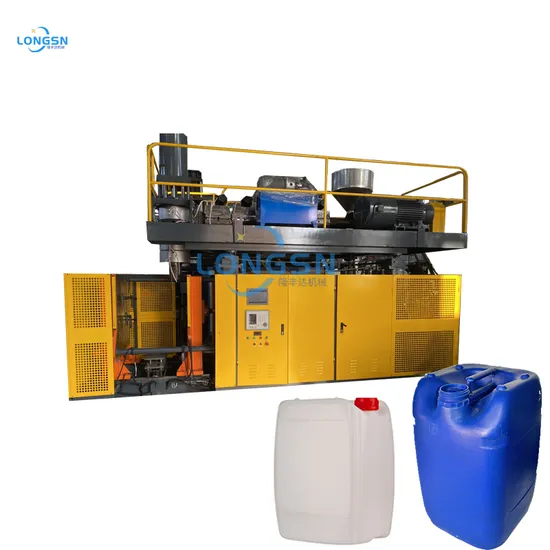

Hot sale Automatic Plastic PE HDPE Bottle Lubricant Oil Barrel Jerry can Production Making Extrusion Blow Molding Machine
The LSN series extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides, detergents etc with material of PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
Detailed Photos
Product Parameters
| Parameters | Units | LSN90S | LSN100D |
| Material | | PE,PP,PV,PVC,PA | PE,PP,PV,PVC,PA |
| Number of die head | set | 1,2,3,4 | 1,2,3,4 |
| Max Container capacity | | 30L | 30L |
| Screw diameter | mm | 90 | 100 |
| Screw L/D ratio | - | 28 | 28 |
| (50HZ)Screw rpm(50hz) | r/min | 10-70 | 10-60 |
| (PE)Extrusion capacity per hour | kg/h | 160 | 200 |
| Number of heaters | - | 4 | 5 |
| Opening stoke | mm | 900 | 900 |
| Platen size | mm | 500*540 | 500*540 |
| Clamping stoke | mm | 450-950 | 450-950 |
| Clamping force | KN | 170 | 170 |
| Dry cycle time | s | 6 | 9 |
| Cooling water pressure | Mpa | 0.2-0.3 | 0.2-0.3 |
| Cooling water consumption | L/min | 40 | 60 |
| Air pressure | Mpa | 0.8 | 0.8 |
| Compressed air comsumption | m3/min | 4 | 6 |
| Machine dimension(L*W*H) | mm | 5000*2900*3950 | 5200*4700*4000 |
| Machine net weight | T | 9.5 | 16 |
| Extruder heating power | kw | 22 | 27 |
| Power of die heating zone | kw | 16 | 16 |
| Hydraulic motor | kw | 18.5 | 18.5 |
| Total power | kw | 106 | 121 |
Certifications
Company Profile
FAQ
Q1:Are you a trading company or a manufacturer ?
A1:We are the manufacturer ,we produce machines ourselves,we can assure the quality.Q2:What is your advantage?A2:Competitive price , Excellent technical support ,24h online serviceQ3:When can I get my machines after I paid?A3:We will arrange delivery on time,act according to the contract.Q4:What's your guarantee or the warranty of the quality if we buy your machines?A4:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 yearsQ5:How can I install my machine when it arrives?A5:We will provide 24 hours online service,if needed we will send our engineer to your side as soon as you get all your machines ready,for testing and teaching your technicians how to run the machines.
>>
