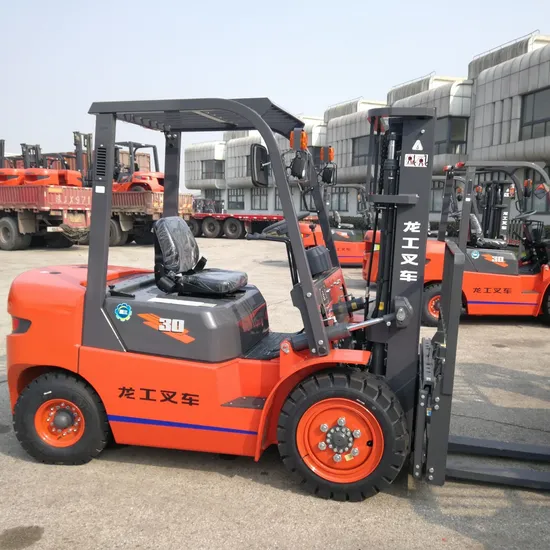

Lonking 3tons Solid Tyre Forklift Truck Cpcd30 Fd30t 3ton 3000kg Diesel Forklift

Product Description

Lonking 3 Tons Forklift Truck Cpcd30 Fd30 china new 3t 3ton 3000kg Diesel Forklift
Product Description
FD30T
Equipped with Xinchai/Quanchai Engine or imported Engine
Advanced Ergonomical Design
Wide View Mast
Diesel Forklift Description:
Diesel forklifts, rated load 3 3.5 4 4.5 5 6 7 10 ton
Advantages: 1. Adopt full hydraulic power steering mechanism, flexible and light steering.
2. The gearbox is independent from the front axle, making maintenance more convenient.
3. The oil cylinder adopts imported sealing ring to prevent oil leakage.
4. Adopt a stronger gantry structure to improve the rigidity of the gantry and further improve the durability of the gantry.
5. The body chassis is high, the ground clearance is large, and the passability is strong.
High configuration, high performance, low fuel consumption, beautiful appearance, wide application range, etc., can provide supporting tools.
Product Parameters

MODEL FD30(T)

Powertype	Diesel
Ratedcapacity(Kg)	3000
JLoadcentre(mm)	500
h1STDMaxliftingheight(mm)	3000
h3Freeliftingheight(mm)	165
L5*W*TSTDForksize(mm)	1070×125×45
Masttiltangle(deg)	6/12
L3Frontoverhang(mm)	478
L4Rearoverhang(mm)	540
R1Min.turningradius(mm)	2460
Min.width for pallets 1,000×1,200 crossways (L×W)(mm)	4155
Speed(load/unload)
Max.travelingspeed(km/h)	20
Max,liftingspeed(mm/s)(load/unload)	485/505
Max.gradient(%)	20
STD Dead weight(kg)	4220
S/PTread(frnt/rear)(mm)	1000/980
L2Axledistance(mm)	1700
Min.groundclearance
m2Mast(mm)	130
m1Frame(mm)	160

Optinal Engine
Engine Model	C490BPG-225	QC490GP-159	C02-624	YN4A055-31CR
Rated Power(kw/rpm)	40/2500	39/2500	36.8/2500	36.8/2600
Max.Torque(Nm/rpm)	156/1800	157/2000	157/1800	180/1800
Number of Cylinders	4	4	4	4
Displacement (L)	2.67	2.67	2.67	2.67

Detailed Photos

---
