US$55,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Monofilament Extruder Line
Plastic Processed
PP and HDPE
Product Type
Mono Yarn Extrusion
Assembly Structure
Separate Type Extruder
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Computerized
Computerized
Diameter of Monofilament
0.1-0.35mm
Usage
Produce Monofilament for Fish Net,Rope
Transport Package
Wooden Case
Production Capacity
10 Sets/Month
Product Description
Application:
To produce monofilament, profiled yarn by HDPE/PP raw material.
Suitable for producing of various kinds of plastic ropes, fishing net, contruction safty net, filter net, mosquito net, net bag, brush, broom, mat, etc.
Advantages:
Suitable for vairous of raw material
Better filament/yarn quality
Low energy consumption
Low maintenance cost
Operator friendly
Best economic benefit
Composition of the Line
Standard items

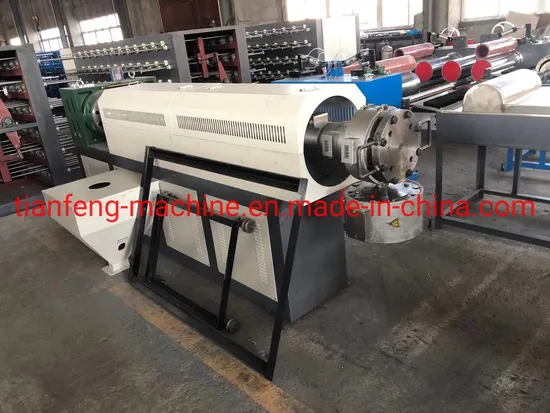

01) Extruder
02) Filer
03) Standard spinneret
04) Water quenching tank
05) Standard haul-off unit with 5 godets
06) Hot water stretching tank
07) Standard stretching unit with 5 godets
08) Filament collection unit with 1 roller
09) Starndard winder for monofilament
10) Electrical and control system
| Optional items
01) Automatic loader
02) Automatic screen changing filter
03) Special spinneret
04) Additional haul-off godets
05) Hot air oven
06) Additional stretching godets
07) Special winder for monofilament
08) Friction winder
09) Magnetic winder
10) Other special winder
11) Cooling water tower
12) Air compressor station
|
Technical Data
| Model | SJ-YS-65 | SJ-YS-80 | SJ-YS-95 |
| Extruder | E65/33 | E80/33 | E80/33 |
| Suitable material | PP or HDPE |
| Dimeter of Monofilament | 0.12-0.28MM | 0.12-0.28mm | 0.12-0.28mm |
| Diameter of screw | Ø65mm | Ø80mm | Ø95mm |
| Ratio of screw L/D | 28:1 | 28:1 | 33:1 |
| Motor of extruder | 18.5kw | 22kw | 37kw |
| Revolution speed of screw | 10 - 50 r.p.m. | 10 - 50 r.p.m. | 10 - 50 r.p.m. |
| Max. extrusion capacity (PP) *HDPE | 40 - 60kg/h | 70- 100kg/h | 80- 150kg/h |
| Dia. of filament | Ø0.1 - 0.35mm | Ø0.1 - 0.35mm | Ø0.1 - 0.35mm |
| Max. winding linear speed * | 150m/min | 150m/min | 150m/min |
| Stretching ratio | 4 - 10times | 4 - 10times | 4 - 10times |
| Number of winder (standard) | 192indles | 270indles | 420spindles |
| System installed power | 75kw | 100kw | 130kw |
| Normal operational power (approx.) | 50kw | 65kw | 85kw |
| Overall dimension (L×W×H) | 24000×1700×1700 | 26000×1700×1700 | 30000×1700×1700 |
>>
