Automatic Biodegradable Bottom Sealing and Cutting Plastic Bag Making Machine

Product Description

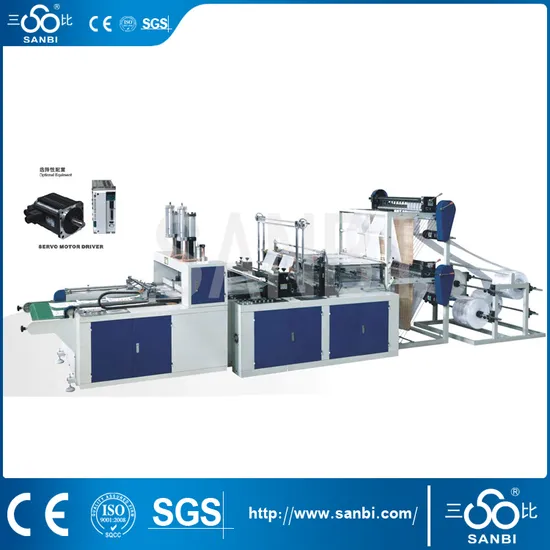

SHXJ-D800/900/1000 Automatic Double-Layer Four-Lines Bag Making Machine
Description :
This automatic double -layer four-lines bag making machine is applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film. It adopts computer control, double servo(step) motor fixed length and the liquid crystal touch screen actual display can be optional to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result. Also can optional double photocell
Main Technical Parameter:

Model	SHXJ-D800	SHXJ-D900	SHXJ-D1000	SHXJ-D1100
Width of sealing &cutting(mm) character	150-300x 4line	150-350x 4line	150-400x 4line	150-450x 4line
Bag width(printed color)	150-700mm x 2	150-800mm x 2	150-900mm x 2	150-1000mm x 2
Length of sealing & cutting(mm) character	200-1200x 4	200-1200x 4	200-1200x 4	200-1200x 4
Speed of bag-making(pc/min)	60-120pcs/minx4	60-120pcs/minx4	60-120pcs/minx4	60-120pcs/minx4
Thickness of film	0.01-0.08mm	0.01-0.08mm	0.01-0.08mm	0.01-0.08mm
Number of strip(pc)	2 or 4	2 or 4	2 or 4	2 or 4
Power of motor(kw)	1.5kw	2.2kw	3kw	3.5kw
G.Weight(kg)	1100	1200	1300	1300
Outline dimension(L×W×H)mm	3600×1500×1950	3700×1600×2000	3800×1800×2100	3900×2000×2200

FAQ
1.Is your company trading company or manufacturer?
We are manufacturer specialized in plastic machine for more than 35 years, all of our engineer with more than 20 years experience.
2. Where is your factory? How can i visit your company?
Our factory is located in Ruian city,zhejiang province, China.
Its about 40 minutes from shanghai by plane(4 hours by train). We will pick you up on airport or station. Welcome to visit our manufacture.
3 What's the scale of your company?
Our company covers 14000 square meter, over 11000 square meter of which is bulding area, consisting over 100 staffs, 20 engineers for technical support.
4 How long is your delivery time?
Our delivery time is 30-45 days. Ugently, we can make your machine first. About 10 days.
5 What's your warranty policy?
18 month guarantee and 1 year after-sales maintenance.

6 What package do you use for the product?
Covered with plastic film. Wooden box package need extra cost .

7 Does your manufacture provide installation service?
Our engineer can go to customer factory to installation. Buyer should prepare materials to test the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary since the day start out until the day arriving at factory.
8 What are your terms of payment?
We accept T/T, L/C. western union.
9 How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
10 Does your engineer understand English?
Our engineer understand a little English. But don't worry, We have professional translators.And All our engineer have more than 20 years machine installation experience.

---
