CNC Metal Turning and Milling Center Slant Bed CNC Lathe Machine

Product Description

This series of high-speed CNC lathes with inclined beds adopt imported or domestic high-performance CNC systems and their matching motors and drives to achieve two-axis linkage processing. Equipped with high-precision spindles, it has the characteristics of high precision, high speed, and stable operation. It can be equipped with hydraulic chucks and elastic collets, which can effectively save workpiece clamping time. Electric turrets, hydraulic turrets, and servo turrets can be selected. This machine tool is suitable for processing larger parts and realizing thread, circle, cone and other processing. It is widely used in the processing of rotating body products in the automotive industry, electronics industry, motorcycles, home appliances, furniture, lighting and other industries.
Spindle
Equipped with custom-made spindle with high productivity, high rigidity and high precision.
Cross Slide
Integrated screw bearing and integrated screw nut seat.
Interpolation Y-Axis
Interpolation Y-axis turning center with milling function
High-Speed Indexing Turret
For the servo turret or servo power turret, we use a high-precision, high-rigidity brand, a high-precision three-tooth positioning structure, high-speed opening and closing, and the shortest path for tool change.Optional Y-axis power turrets or imported hydraulic turrets.
Tailstock
Tailstock-free integrated linear guideway tailstock.

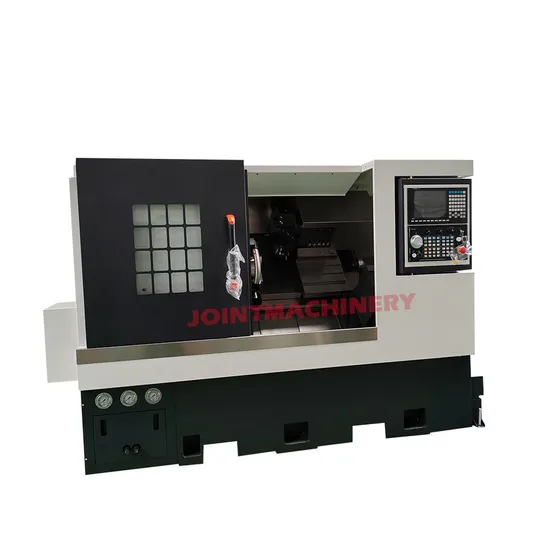

CNC Metal Turning and Milling Center Slant Bed CNC Lathe Machine

Model		HTW-400M
Processing range	Max swing diameter over bed (mm)	Φ410
	Max processing diameter of cylindrical tool (mm)	Φ250
	Max processing diameter of end face tool (mm)	Φ310
	Max processing diameter of side milling drill (mm)	Φ250
	Max processing diameter of carriage (mm)	Φ250
	Max processing length (mm)	300
	Spindle/Chuck specifications	A2-5/6''
	Spindle through hole diameter/Bar diameter	Φ56/middle 45
Axis	X-axis travel (mm)	210
	Z-axis travel (mm)	350
	X/Z axis screw specifications	3210-C3/3212-C3
	Linear way	X35/Z35 type roller
	X/Z rapid feed speed (m/min)	30/30
Tool magazine	Tool position	12T
	Turret model	80-BMT45-12T
	Shank size/Max (standard) boring bar (mm)	20*20/Middle32
	Milling and drilling tool chuck specifications	ER20
	Max speed of power axis (rpm)	3000
Tailstock	Travel (mm)	350
	Taper	Mo4#
Appearance	Dimension (mm)	2300*1500*1700
	Weight (kg)	3000
Accuracy	Positioning accuracy (mm)	X,Z≤0.005
	Repeat positioning accuracy (mm)	X,Z≤0.003
	Spindle indexing	0.01°
Electric	Control system	SYNTEC
	Main motor power/Main motor reduction ratio	7.5kw/1:1.5
	Spindle max speed (rpm)	4000
	X/Z axis motor torque (N.m)	8.34/8.34
	Power axis motor torque (N.m)	10

Standard Configuration:
HIWIN/PMI P- level matching guide rail, HIWIN/PMI C3 grade double nut screw, Imported servo or hydraulic turret, Taiwan spindle, Herg lubrication system, LX coolant system, Fully enclosed cover, C-axis function
Optional Configuration:
Chip conveyor, Auto doors, Fanuc/Mitsubishi/Siemens system, Tool setter, Ethernet functions
Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

---
