Xt-X-4c Operating Microscope Used in Ophthalmic Surgery

Product Description

Purpose

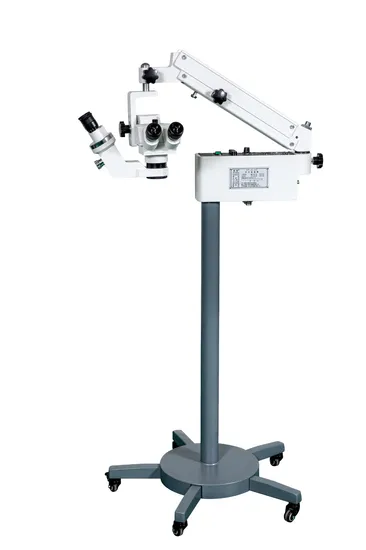

The XT-X-4C operating microscope is mainly used in ophthalmic surgery.
Optional Accessories
4-20X continuous variable magnification assistant mirror
Product Features
The imaging is clear and the body vision is strong.
Wide field of vision, cold light source coaxial illumination.
Equipped with assistant mirror, two people operate at the same time.
Foot control fine-tuning, light and flexible, easy to operate and carry.
Technical parameters

Main lens eyepiece magnification	12.5X Alfer wide-angle eyepiece
objective lens focal length	200mm
working distance	200mm
main lens total magnification	10X
assistant lens magnification	4X (optional 4-20X continuous magnification)
field of view diameter	27.5mm
assistant lens field of view diameter	52mm
interpupillary distance adjustment range	55mm-75mm
diopter adjustment range	± 6D
illumination mode	coaxial cold light source illumination, 8V 50W Eurosgerman halogen dimming lamp
manual	≥ 45000LX
rack spring arm adjustment range	≥ 300mm
cross arm extension radius	800mm
electric fine adjustment lifting range	≥ 40mm
speed	≤ 2.5 mm/s
power supply voltage and frequency	220V 10% 50Hz

Our company will further deepen the internal reform of the enterprise, continuously introduce technical personnel, focus on cultivating scientific research and development teams, and continuously develop and manufacture surgical microscopes required by customers according to the needs of the market, so as to fully meet the clinical needs of various medical institutions.

---
