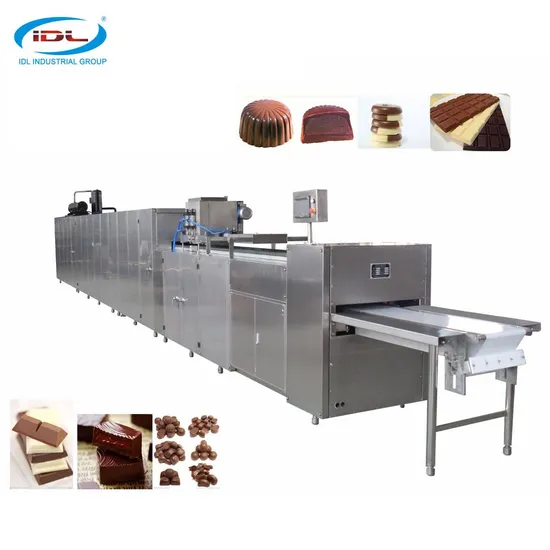

High Quality Chocolate Depositing Machine with PLC Control

Product Description

Chocolate Depositing Machine/ Chocolate Moulding Machine/ Chocolate Production Line
Product Description
a. The chocolate production line includes sugar grinder, cocoa butter melting tank, chocolate conche, chocolate holding/storage tank, chocolate tempering machine, chocolate depositing machine and chocolate packing machine.
b. The full automatic depositing machines have fully automatic functions of moulds pre-heating, depositing, moulds vibrating, cooling, de-moulding and conveying, and adopts PLC control system. The chocolate weight, speed, chocolate fillings and other settings can all be set via the PLC control system.
c. We can provide semi-automatic, full automatic chocolate depositing/ moulding machine equipped with one shot, two shots or three shots. The depositing production line can be used to produce different kinds of chocolates, such as ball chocolate, square chocolates, chocolate bars, pure chocolate, or chocolate with fillings, chocolate mixed with nuts, two colors chocolate (left and right or up and down).
d. We can provide customers a complete chocolate production line and turnkey projects according to different customers' specific requirements. All of our machine can be customized.
Technical Specifications

Model	IDL150 (Semi-auto)	IDL175-1 (One shot)	IDL175-2 (two shots)	IDL510-1 (one shot)	IDL510-2 (two shots)	IDL510-3 (three shots)
Capacity (piece of mould/min)	6-15	6-15	6-15	6-15	6-15	6-15
Whole machine power (kw)	6	19	23	21	25	47
Number of mould (Piece)	200	280	330	280	330	380
Mould Size (mm)	275*175*30	330*200*30	330*200*30	510*200*30	510*200*30	510*200*30
Machine weight (kg)	500	3500	4500	4000	5000	7000
Outside Dimensions (mm)	4000*520*1500	16000*1000*1600	16000*1000*1800	16000*2000*1600	16000*1200*1800	19000*1300*2500

Product Detailed Photos
Company Profile
After Sales Service
We can provide door to door services and turnkey projects for customers from all over the world.
Supply of spare parts for whole product life time. 7*24 hours online technical support. Free training for operation & maintenance of equipment. On site installation & commissioning. For more information, please feel free to contact us. Welcome to our factory, IDL will be your ideal partner.

---
