Intelligent Logistics Solution for Express Transshipment Automatic Cross Belt Sorting Machine Linear Sorters System Parcel Warehouse Sorting Line

Product Description

Product Description
Intelligent Logistics Solution for Express Transshipment Automation
*Intelligent Logistics Solution for Express Transshipment Automation
Main Products of Gosunm Logistics Equipment
1. Loop Crossbelt Sorter
2. Linear Cross Belt Sorter
3. High Speed Narrow Belt Sorter
4. Dynamic DWS + Sorter Machine
5. Dynamic DWS
6. Static DWS Machine
7. Wheel Sorter Machine
8. Environmental Prolection Packaging
9. High-Speed Printing and Labeling Machine
10. Customized Logistics Parcel Sorting Solution Line
11. Warehouse Management System

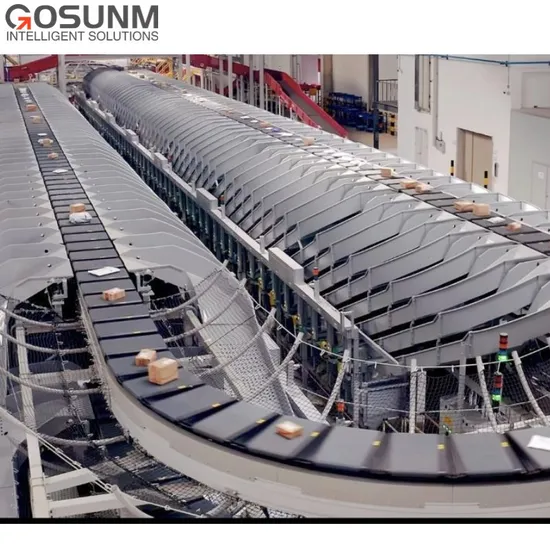

What Is Loop Crossbelt Sorter The loop crossbelt sorter is mainly composed of four parts: the supply system, the sorting trolley, the parcel of-loading system and the control system. Under the coordinated control of the control system, the parcels are imported from the supply system into the sorting trolley for sorting, and the parcel off-loading system completes the physical location of the parcels for sorting storage, thus achieving the parcel sorting function. There are three types of lines that are widely used, namely single-layer single trolley sorting systems double-layer single trolley sorting systems, and single-layer double trolley sorting systems.
Application fields Postal, Express, E-Commerce
Workflow The parcels are placed manually, the scanning system gets and uploads the barcode information to the headquarters server, the headquarters feeds back the parcel drop grid information, the parcels enter the sorting trolley through the package supply platform, the sorting trolley runs on the track, runs to the designated port, slides the trolley belt left and right, and drops the parcels into the designated port for collection Advantages 1.Compact structure, small footprint ; 2.Reading code accurately, scanning code weighing integration, save time ; 3.Sorting a wide range of parcels, high sorting efficiency, low misclassification rate ; 4.Sorting action is gentle, the impact on the goods is small ; 5.durable, low noise, cost-effective, convenient installation and maintenance ; 6.Strong adaptability and flexible configuration. can connect with various information management systems of customers and customize functions according to user needs

Equipment Technical Parameters
Mainline Speed	1.8-2.5m/s
Weighing Function	Front static weighing / upgradeable to dynamic weighing
Maximum Sorting Efficiency	13200pcs/hour
Weighing Range	10g-10KG
Trolley Size	426mm*700mm
Trolley Pitch	600mm
Width of Port	750mm

Size Range of Sorted Goods	10*50*50-200*400*400mm
Sorting Accuracy	99.99%
Controller	Complete Siemens controller solutions (1500. 1200 series PLC
Loop Drive	Linear motor (electromagnetic drive)
Trolley Drive Type	Drum Motor/Servo Roller

Project Detailed Drawing
The express transfer station is composed of a telescopic belt conveyor, a high-speed belt conveyor, a drop belt conveyor, an interval conveyor belt, a single-piece separation device, a centering module, a DWS detection device, a DWS six-sided scanner, an RFID identification device, the balance wheel sorting machine and an annular cross belt sorting machine, etc., and is matched with a perfect control system and a management system to realize the package from unloading to sorting and then to loading.Automated operation of the entire process.The intelligent logistics solution of express transshipment automation adopts modular design, which can make dynamic adjustment according to the size of the site and the status of the goods, and can meet the peak sorting needs and challenges of multiple trucks unloading synchronously.Accurate sorting, through single separation to control the distance between packages, DWS six-sided scanning omni-directional code reading without dead angle, real-time tracking of package trajectory, accuracy can reach more than 99%.The scheme applies a number of automated logistics equipment combined with advanced Internet of Things technology to build a standardized, automated and intelligent sorting system.
More Parcel Sorting Equipment with Different Functions

What Is Static DWS Machine
GOSUNM Static Dws Is an Intelligent Logistics Equipment Specially Developed to Realize Dimension Measurement Weighing, Code Scanning and Result Tracking of Packages Under Static Conditions. With the Code Reading Module and the Dimension Measurement Camera as the Core, The Static Weighing Module Is Matched to Collect Information Quickly and Accurately. It Can Be Used in Large-Scale Warehousing and Distribution Centers, And Can Also Be Used Separately in Retail Distribution, Express Delivery and Other Scenarios
What Is Dynamic DWS
Dynamic Dws Equipment Is an Integrated Intelligent Logistics Equipment That Can Automatically Measure the Volume of Goods (Packages), Dynamically Weigh the Goods, And Dynamically Scan Codes on Goods. D Stands for Dimension, W Stands for Weight, And S Stands for Scanning. This Device Can Be Connected to the System to Automatically Upload the Collected and Processed Package Data, And Sorting Equipment Can Be Added at the End as Needed to Improve the Processing Speed and Improve Efficiency.
What Is Dynamic DWS + Sorter Machine
Dynamic Dws+ Sorting Is an Intelligent Logistics Machine That Automatically Measures, Weighs, Scans and Sorts Goods (Parcels) Automatically. The Complete Machine Consists of a Top Scan Module, A Three-Stage Dynamic Scale and a Sorter. The Top Scan Module and the Dynamic Scale Collect the Volume, Weight , And Face Sheet Information of the Goods (Parcels) and Feed It Back to the Pc Upper Computer System, Where the Parcels Are Handed over to the Sorter for Sorting in Specified Manner Through a Pre-Defined Procedure. The Information Collected by the Equipment and the Calculated Sorting Information Is Consolidated and Stored in the Pc for Query and Export
What Is High Speed Narrow Belt Sorter
Narrow-Band Sorting Machine Is a Non-standard Customized Sorting Line, Which Is a Belt Conveyor Composed Ofmultiple Narrow Belts Distributed at Equal Intervals. It Is Driven by the Left and Right Sides of the Belt to Send Thegoods to the Designated Grid, So as to Achieve Rapid Sorting of Goods.
What Is Wheel Sorter Machine
Also Known as Inclined Guide Wheel Sorter, Deflected Wheel Sorter, Modular Wheel Sorter. It Is a Sorting Equipment That Drives the Direction of the Sorted Items by Changing the Direction of the Rollers on the Contact Surface to Achieve the Purpose of Sorting. The Wheel Sorter Is More Used in Unloading Rough Sorting, Bulky Sorting, Heavy Sorting, Scanning Loadina and Other Links. It Has the Characteristics of High Efficiency, High Accuracy, High Load Capacity, Light Application, And Zero Loss in Sorting.
Workflow of Dynamic DWS Equipment
Taking warehouse transferment as an example, parcels are transferred to DWS equipment through transfer machines or manual placement. The DWS system automatically collects the volume, weight and face sheet information of the parcels and calculates the parcel sorting grid in advance according to the built-in application, and after the parcels reach the designated location, the sorting equipment gets a signal and transports the parcels to the designated sorting grid to complete the sorting work, and then loads the vehicles and transports the parcels to the designated location through the trucks.
Programme Features
* The scheme adopts modular design, which can be flexibly adjusted according to the site and cargo.
* The scheme adopts DWS five-side scanning and DWS six-side scanning detection equipment and high-speed code reading camera for multi-directional detection, with an accuracy of more than 99%.
* High sorting efficiency. The flexible design scheme of multi-layer cross belt configuration doubles the sorting efficiency and greatly utilizes the site space.
* Highly automated and intelligent, can adjust the degree of automation according to user needs, realize the organic combination of man and machine, and reduce costs
Programme Advantages
* The senior engineer conducts field survey and leads the design team to complete the scheme design according to the site conditions.
* On-site implementation and commissioning by delivery engineers to ensure stable operation of the solution, providing on-site technical support services
* Organize preventive maintenance regularly to prolong the service life of the machine
* Multiple emergency prevention programmes to respond to sudden emergencies
* Technical director and R & D team provide timely remote service, cooperate with resident engineers or on-site technicians to solve problems. Company Profile

---
