5 Axis Linkage CNC Machine Tools with A axis rotation angle

Product Description

U-C260 FIVE-AXIS FEATURE:

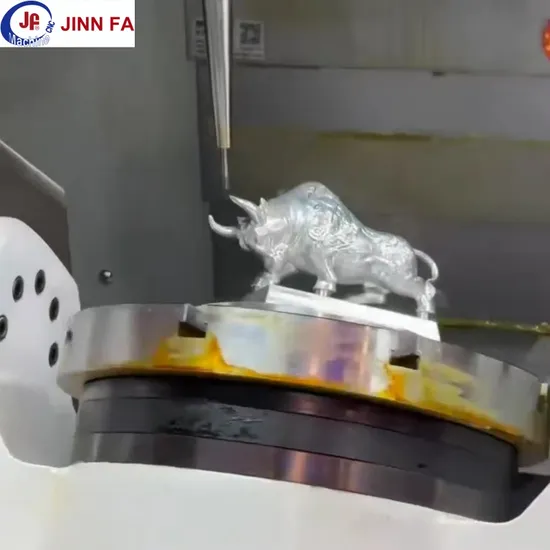

The UC series is characterized by a mechanical structure consisting of a spindle and a tilting and rotating worktable, which reserves a large processing area to suppress interference between the workpiece and the tool. The tool can be fed vertically, horizontally, and at any angle enabling a variety of processing with a small number of tools. Moreover, it has a large range of motion to accommodate applications and fixtures with complex shapes.
The UC series can integrate all processes from materials to finished products on a single machine tool. Concentrating the processes into turning and milling processes is expected to achieve the following effects.
+Reduce processing preparation work
+Significantly shorten the production cycle
+Reduce installation fixture costs and equipment costs
+Reduce machine tool footprint
+Minimization of cumulative errors and high-precision machining through intensive processes
Product Parameters

MODEL	UNIT	UC-260	UC-320
BASIC SPECIFICATION
Travel XYZ	mm	700×550×520
Spindle nose to work surface (center line)	mm	100-620(horizontal)
T-slot width	mm	12H7
T-slot quantity	degree×unit	90×4
A axis rotation angle	mm	-120°~120°
C axis rotation angle	mm	360°
Spindle
spindle motor	kw	11
spindle speed	rpm	10-12000
spindle inner taper hole		BT40
Feed axis
Rapid feed rate(X/Y/Z)	m/min	36/36/36
A/C axis maximum speed	rpm	150(A tilt axis) 300(C Rotary axis)
Fastest cutting feed rate	mm/min	1-10000
Positioning accuracy(full travel)	mm	±0.005
Repeat positioning accuracy(full travel)	mm	±0.003
Tool magazine
Tool magazine capacity(standard/optional)	set	24/30/32
Tool magazine form		tool arm type
Pull stud form	degree	45
Maximum tool diameter(when there are tools in adjacent tool positions)	mm	76
Maximum tool diameter(when there are no tools in adjacent tool positions)	mm	150
Maximum tool length	mm	300
Maximum tool weight	kg	8
OTHERS
Air pressure requirement	kg/cm2	7
Power specifications		AC380±10%,60Hz/50Hz
Power demand	KVA	30
Total machine weight(approx)	T	5.2
Overall size(length×width×height)	mm	2600×3000×3000
A/C five-axis parameters
Five axis type		Dual DD direct drive motors
Disk diameter	mm	Φ260	Φ320
Maximum processing diameter	mm	Φ380	Φ480
A Rotary axis motor	nm	260(Max:460)
C Rotary axis motor	nm	130(Max:230)
Minimum division value	degree	0.001
Indexing accuracy	sec	±5"(tilt ) ±5"((rotary)
Repeatability	sec	±3(tilt) ±3"(rotary)
A axis tilt angle	degree	-120°~120°
Load	kg	60(Vertical) 60(Horizontal)
Note: Our company reserves the right to change the specification without advance notice.

JINN FA Gang Tool CNC Lathe's Advantage:
1: Simplicity and Affordability
Gang tool lathes are often more cost-effective than turret lathes due to the simplicity of their tool change process. The lathe's standard axis servos and leadscrews handle all the work, whereas motorizing a turret can increase costs significantly.
2: Precision
Gang tool CNC lathes have an accuracy advantage over turret lathes due to their simpler moving parts, which reduces tolerance stack up and other types of slop. Additionally, the gang lathe is better suited for moving parts across shorter distances.
3: Rapidity
The tool change process in gang lathes is incredibly speedy as it utilizes slide motion for tool changes, eliminating the need for turret indexing.
4: Quick Installation
Gang tooling lathes offer fast setup times, with a simple set of tools and the ability to switch out a single block for a specific size twist drill allowing for a wide range of gang work to be accomplished.
5: Durability
Gang Tool lathes are known for their robustness, which is directly linked to their simplicity. With fewer moving parts, gang lathes are less prone to errors and malfunctions.
Company Profile
POLOMAC TECHNOLOGY(QING DAO)L.L.C
PROFESSIONAL CNC MACHINING MANUFACTURER & SUPPLIER


We have done a great deal to ensure the quality of our machines meets international standards. To this end, we have rigorous inspection procedures, which are conducted throughout all phases of the manufacturing process. This allows us to ensure the ultimate in quality. This commitment to quality and expert workmanship enables JINN FA to offer machines that fully meet customers' strict requirements of machine performance.
High Accuracy High Quality High Efficiency
JINN FA Machine industrial Co., Ltd. was established in 1976 as a Precision Metal Lathes Machine Tool Manufacturer. JINN FA designs and manufactures a wide range of auto lathes, cnn lathe machines, CNC machining centers and special purpose machines. Based on the company philosophy of technological innovation and leadership, JINN FA has spent great efforts in the research and development of advanced machine tools. Our precision cnc metal lathe machines have been widely sold to many countries in the world. Each metalworking lathe and machine is manufactured to the highest quality standards, with the highest versatility, providing the most competitive edge for parts machining. JINN FA machines are further enhanced by fine craftsmanship, which guarantees the user outstanding precision performance. Today JINNFA continues to labor at the technological forefront of the machine tool industry, maintaining a reputation for innovation design, state-of-the-art manufacturing techniques and rigorous quality control.
JINNFA continues to expand its service market, adhering to the company's belief of continuous technological innovation and technological leadership. In 2001, China POLOMAC TECHNOLOGY Co., Ltd. was established to enable every Jinnfa machine to serve the world.
A highly reputed manufacturer of CNC precision metal lathes, CNC machining centers and special purpose machines.
Certifications
Packaging & Shipping
FAQ
1.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A:FANUC, SIEMENS, MISTSUBISHI, GSK, SYNTEC. lt depends on your choice.
3:How can l choose the most suitable machines?
A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you.
4: What's your main products of your company?
A: We are a machine tool manufacturer that produces CNC lathes, CNC milling machines, vertical machining centers, Swiss style automatic lathes, grinders, and machine tool specific tools and precision parts OEM.
5: Can you come to our company for technical support?
A : Yes, we can provide on-site technical support, but travel and service fees will need to be paid.
6. What is your trade terms?
A:FOB, CFR and CIF all acceptable.
7: What's the Payment Terms?
A:T/T, 30% initial payment when order, 70% balance payment before shipment; lrrevocable LC at sight.

---
