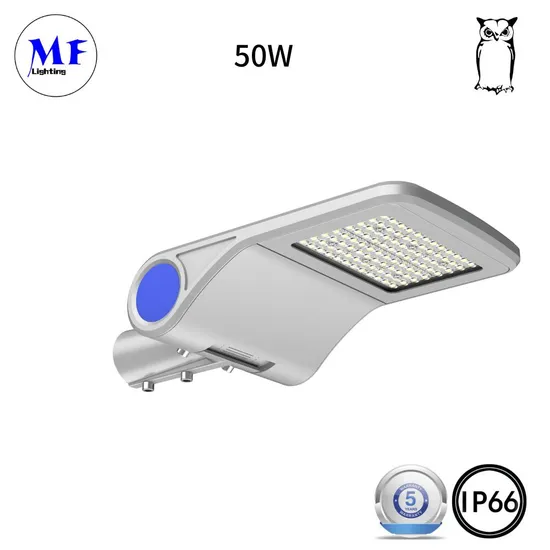

Factory Price IP66 Ik08 Meanwell Driver 30W 50W 60W 80W 100W 120W Outdoor Street Road Lamp Road Lighting Public Lighting LED Street Light

Product Description

Factory Price IP66 Ik08 ADC12 Meanwell Driver 30W 50W 60W 80W 100W 120W T2-M, T3-M. Outdoor Street Road Lamp Road Lighting Public Lighting LED Street Light
Quick Detail
Lumi- leds /Os- ram chips, high brightness, low light decay & long life-time
International driver brand, overheat protection, high convert efficiency, high PF & surge protection, (1-10V,DALI2.0)
Die-casting technology with ADC12, excellent thermal management and balance the internal & external temperature, reduce chip Tj and light decay.
4mm tempered glass cover with 94% light transmi ance, IK08. Light Distribution: T2-M, T3-M.
Pole installation. operation temperature: -35C- +50CSpecifications

Power	30W/50W/60W/80W/100W/120W/150W/180W/200W/240W
LED Chips	ORS
Luminous Efficacy	140~150lm/W
CCT	3000K-6500K
CRI(Ra)	70+/80+
Driver	Meanwell / Sosen
Input Voltage	AC100-277V
Power Factor	>0.95
Output Voltage	DC36V
Total Harmonic Distortion	<15%
Driver Efficiency	92%
IP Rating	IP66
Lifespan	60,000Hours
Housing	Aluminum
Lens Material	PC+Glass
Fixture Size	424*208*94 mm
Net Weight	3.0KG

Product Description
Looking for a reliable and efficient LED street light?
Look no further than our latest model, featuring World class chips for high brightness, low light decay, and long life-time. With an international driver brand, overheat protection, high conversion efficiency, high PF, and surge protection (1-10V, DALI2.0), this street light is built to perform.
Crafted with die-casting technology using ADC12, this street light provides excellent thermal management and balances the internal and external temperature, reducing chip Tj and light decay.
The optial UV resistant PC lens with 94% light transmittance and IK08 rating ensures durability and reliable performance.
With a light distribution of T2-M, T3-M and pole installation, this street light is designed to provide optimal illumination for various outdoor environments.
It operates in a wide temperature range from -35C to +50C, and with an IP66 rating and a lifespan of up to 50,000 hours, it's the perfect choice for your outdoor lighting needs.
Choose from our range of wattages, including 30W/50W/60W/80W/100W/120W/150W/180W/200W/240W, to suit your specific lighting requirements.
Don't settle for less than the best, choose our LED street light for reliable and efficient outdoor illumination.
Detailed Photos
10KV lighting arrestor, 3 wire photocell, on/off switch
Photometry
These parameters [Lav, U0, UI, TI, SR] can meet the requirements. In
accordance with CIE140 / EN13201 (ME3 ~ ME5) requirements, through
simulation, this narrow light distribution is ideal for illuminating
sidewalks, trails and sidewalks.Narrow light distribution can also be used for dual lanes. You can use
this type of light distribution on wide sidewalks, side roads and
auxiliary roads. According to the requirements of CIE140 / EN13201
(ME3 ~ ME5), by simulation, these parameters [Lav, U0, UI, TI, SR] can
meet the requirements.The wide light distribution is ideal for freeways, expressways and urban
arteries. The step height ratio of the point can reach 3.5. According to the
requirements of CIE140 / EN13201 (ME1 ~ ME2), through simulation,
these parameters [Lav, U0, UI, TI, SR] can meet the requirements.The wide light distribution is also ideal for multi-lane roads. You can use
wide light distribution for multi-lane arteries, downtown roads, etc. The
pitch height ratio of the point can reach 3.5. (ME1~ ME2), through
simulation, these parameters [Lav, U0, UI, TI, SR] can meet the requirements.
Dimension
Packaging & Shipping
Applications
LED street lights are suitable for various outdoor lighting scenarios, including city roads, highways, parking lots, plazas, parks, campuses, sports venues, docks, and more. They can provide efficient and reliable illumination, helping to ensure safe and comfortable nighttime environments. LED street lights also have the advantages of energy efficiency, environmental friendliness, and long lifespan, which can reduce energy consumption and maintenance costs.
Advantage of LED street light:LED street lights are energy-efficient, consuming up to 50% less energy than traditional lighting sources.
They have a longer lifespan, lasting up to 10 times longer than traditional lighting sources.
LED street lights provide better visibility and a higher quality of light, improving safety and security in outdoor areas.
They are environmentally friendly, with no toxic materials or emissions, and can reduce a city's carbon footprint.
LED street lights require less maintenance, reducing maintenance costs and improving reliability.
They provide better light control, with dimming and remote control capabilities, reducing energy consumption during off-peak hours.
LED street lights have lower heat output, reducing the risk of fires and related safety hazards.
They provide instant light output, eliminating the need for warm-up time and improving safety in outdoor areas.
LED street lights are highly durable, with shock and vibration resistance, making them suitable for harsh outdoor environments.
They can be easily integrated with smart city technologies, such as sensors and data collection devices, to improve city services and efficiency.

---
