20m3/H 30m3/H 60m3/H 100m3/Hmobile Concrete Mixng Plant Low Cost Professional Factory Concrete Batching Plant

Product Description

YHZM series Mobile Concrete Batching Plant with Drum Mixer

Model	YHZM20	YHZM30	YHZM60	YHZM100
Capacity	20 m3/h	30 m3/h	60 m3/h	100 m3/h
Concrete Mixer	JZM500	JZM750	JZM1500	JZM2000
Aggregate Batching Machine	PLD800 with 3 bins	PLD1200 with 3 bins	PLD2400 with 3 bins	PLD3200 with 4 bins
Screw Conveyor	LSY219	LSY219	LSY273	2*LSY273
Mobile Horizontal Cement Silo	50T	50 T	50 T	2*70T
Cycle Time	1 min	1 min	1 min	1.5 mins
Aggregate Weighing Accuracy	±2%	±2%	±2%	±2%
Cement Weighing Accuracy	±1%	±1%	±1%	±1%
Water Weighing Accuracy	±1%	±1%	±1%	±1%
Additive Weighing Accuracy	±1%	±1%	±1%	±1%
Total Power	42 kw	46 kw	67.5 kw	77.5 kw
Total Weight	12 T	13 T	16 T	26 T

YHZS series Mobile Concrete Batching Plant with twin shaft Mixer

Model	YHZS25	YHZS35	YHZS60	YHZS75
Capacity	25 m3/h	35 m3/h	60 m3/h	75 m3/h
Concrete Mixer	JS500	JS750	JS1000	JS1500
Batching Machine	PLD800 with 3 bins	PLD1200 with 3 bins	PLD1600 with 3 bins	PLD2400 with 3 bins
Screw Conveyor	LSY219	LSY219	LSY273	LSY273
Mobile Horizontal Cement Silo	50 T	50 T	70 T	70 T
Cycle Time	1 min	1 min	1 min	1 min
Aggregate Weighing Accuracy	±2%	±2%	±2%	±2%
Cement Weighing Accuracy	±1%	±1%	±1%	±1%
Water Weighing Accuracy	±1%	±1%	±1%	±1%
Additive Weighing Accuracy	±1%	±1%	±1%	±1%
Total Power	61 kw	76 kw	85.5 kw	95 kw
Total Weight	13 T	15 T	19 T	22 T

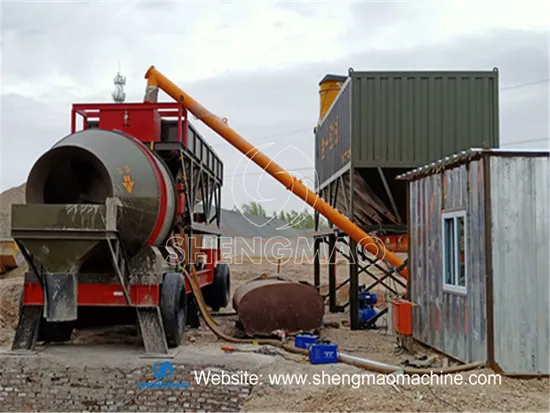

Shipping picture

Our client
Our service
Pre-sale Service1 Answering customers' questions, helping customers choose the most suitable machines;2.Making design drawings as per customers' requirements;3. Providing quotations.
In-sale Service1. Strictly control all prodedures from raw materials sourcing to pre-assembly to ensure product quality;2. Regularly updating production production progress to clients;3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;4. Proper packing to minimize the risk that the machines are damaged during transportation;5. Foundation drawing will be provided for clients to make foundation in advance.
After-sale Service1. Providing 7 * 24 hours online after-sales service every week2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.3. Arranging engineers to go to client's job site. The engineers will help clients with the machine installation, machinetest-running and operators training etc.4. Spare parts supply;5. Job site visiting every year
Our Certificate

---
